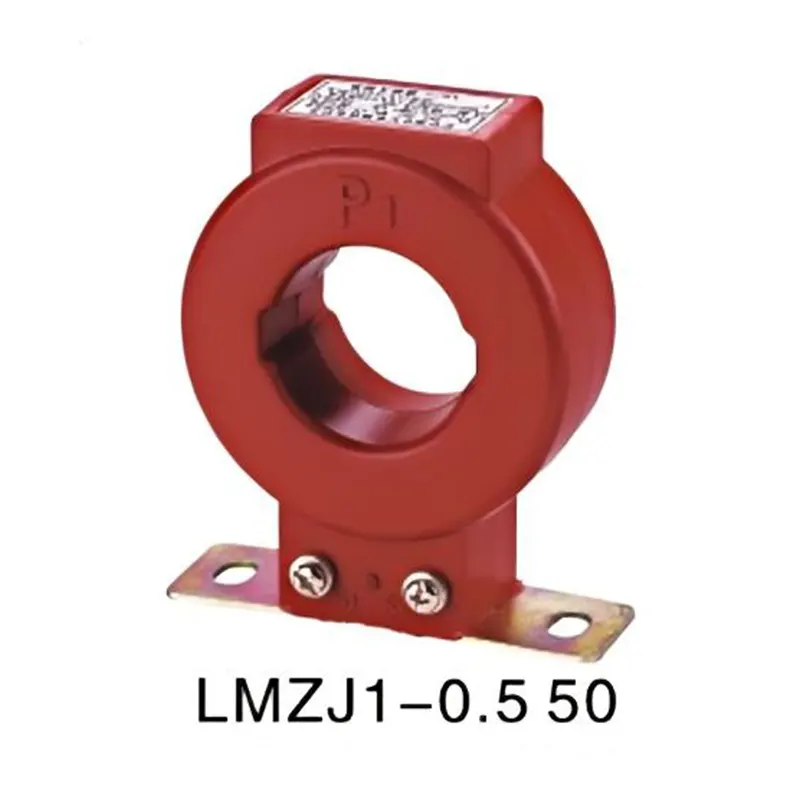

The LMZJ1-0.5-50 series features high accuracy, low phase angle error, and excellent linearity, ensuring precise measurement of current levels. These current transformers are compact in size, making them easy to install and suitable for use in various industrial environments. With a robust construction and high-quality materials, LMZJ1-0.5-50 CURRENT TRANSFORMERS offer long-term stability and durability. Trust Lmzj1-0.5-50 Current Transformers for accurate current measurement and reliable protection in your electrical systems.
| Rated voltage | 500V |
| Rated frequency | 50Hz |
| Rated primary current | 10A, 12.5A, 15A, 20A,25A..,6000A |
| Rated secondary current | 5A;1A |
|
Secondary load power factor |
0.8(delay) |
| Rated output | 2.5VA, 5VA, 10VA, 20VA |
| Accuracy | 0.2;0.2S;0.5;0.5S |
| Isolation resistance |
isolation resistance of primary winding to secondary winding and to earth ≥20MΩ |
|
Power frequency withstand voltage |
Withstand valid value of primary winding to secondary winding and to earth ≥ 3kV |
