The BH-0.66 Series III Current Transformers are designed to meet the demands of modern electrical systems, providing accurate and reliable current measurement for a wide range of applications. These transformers are built with precision and durability in mind, ensuring long-term performance in various environments.
. High Accuracy: The BH-0.66 Series III offers exceptional accuracy, ensuring precise current measurement for both industrial and commercial applications.
. Compact Design: With a compact and lightweight design, these transformers are easy to install and integrate into existing systems without taking up much space.
. Wide Range of Applications: Suitable for use in energy management, power monitoring, and protection systems, the BH-0.66 Series III is versatile and adaptable to different needs.
. Robust Construction: Built with high-quality materials, these transformers are resistant to environmental factors such as humidity, temperature fluctuations, and mechanical stress, ensuring reliable operation over time.
. Compliance with Standards: The BH-0.66 Series III complies with international standards, guaranteeing safety and performance in accordance with industry regulations.

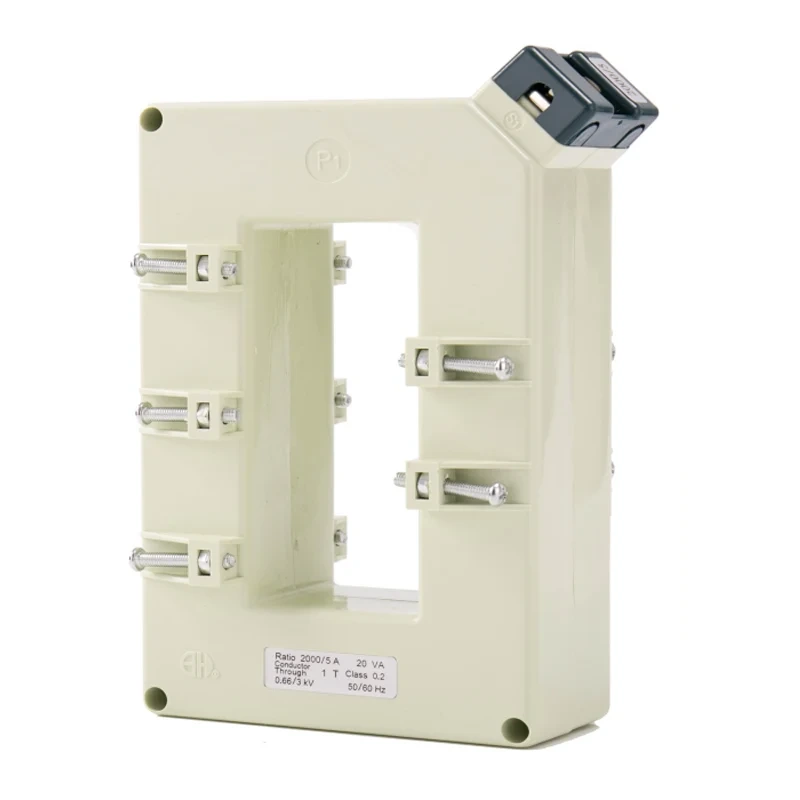

Rectangular (vertical) window to fit single or multiple bus bars especially vertical bus bar.Mainly used for instrumentation and metering.Designed in Fullil the instrumentation requirements of power supply systeems.Has higher accuracy calsses and greater burdens.Easy installation and wiring.

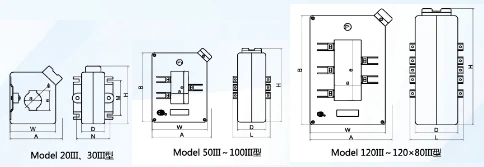

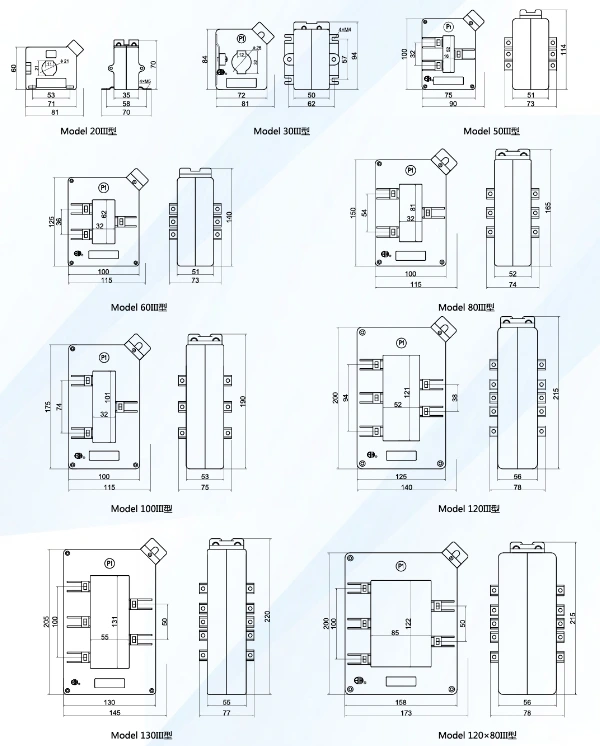

| Model | Outline Dimension(mm) | Window Dirrersion(mm) | Irctr btioral Dimendon(mm) | Installational Method | ||||||||
| A | W | H | B | D | E | a | c | Φ | M | N | ||
| 20III | 81 | 71 | 70 | 60 | 35 | 11 | 21 | 21 | 53 | 57 | J | |
| 30III | 81 | 72 | 94 | 84 | 50 | 12 | 32 | 26 | 57 | 59 | K | |
| 50III | 90 | 75 | 114 | 100 | 51 | 73 | 16 | 52 | D | |||
| 60III | 115 | 100 | 140 | 125 | 51 | 73 | 32 | 62 | D | |||
| 80III | 115 | 100 | 165 | 150 | 52 | 74 | 32 | 81 | D | |||
| 100III | 115 | 100 | 190 | 175 | 53 | 75 | 32 | 101 | D | |||
| 120III | 140 | 125 | 215 | 200 | 56 | 78 | 52 | 121 | D | |||
| 130III | 145 | 130 | 220 | 205 | 55 | 77 | 55 | 131 | D | |||
| 120x80III | 173 | 158 | 215 | 200 | 56 | 78 | 85 | 122 | D | |||
| Model | 20III | 30III | 50III | 60III | 80III | 100III | 120III | 130III | 120x80III | |
| Cable Diameter | Φ21 | Φ26 | ||||||||
| Max Bushar Size/QTY | 20x10/1 | 30x10/1 | 50x10/1 | 60x10/1-2 | 80x10/1-2 | 100x10/1-2 | 120x10/2-3 | 130x10/2-3 | 120x10/2-5 | |
| Accuracy Class | 0.5 1 | 0.2 0.5 | 02 0.5 | 0.2 0.5 | 0.2 0.5 | 0.2 0.5 | 02 0.5 | 0.2 0.5 | 02 0.5 | |
|
Primary Current/Secondary Current(A) |
Rated Burden (VA) | |||||||||
| 75 | 5 | 25 | ||||||||
| 100 | 25 | 2.5 | ||||||||
| 150 | 25 5 | 5 | ||||||||
| 200 | 5 10 | 10 | ||||||||
| 250 | 5 10 | 10 | 5 | |||||||
| 300 | 5 10 | 5 | 5 | |||||||
| 400 | 5 10 | 5 | 5 | 5 | ||||||
| 500 | 5 10 | 10 | 10 | 10 | 10 | |||||
| 600 | 5 10 | 5 10 | 10 | 10 | 10 | 10 | ||||
| 750(800) | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | 10 | |||
| 1000 | 15 20 | 15 20 | 15 20 | 15 20 | 15 20 | 15 20 | 15 20 | |||
| 1200 | 20 30 | 20 30 | 20 30 | 20 30 | 20 30 | 20 30 | ||||
| 1500(1600) | 20 30 | 20 30 | 20 30 | 20 30 | 20 30 | 20 30 | ||||
| 2000 | 20 30 | 20 30 | 20 30 | 20 30 | 20 30 | 20 30 | ||||
| 2500 | 30 40 | 30 40 | 30 40 | 30 40 | 30 40 | |||||
| 3000 | 30 40 | 30 40 | 30 40 | 30 40 | 30 40 | |||||
| 4000 | 30 40 | 30 40 | 30 40 | 30 40 | ||||||
| 5000 | 30 40 | 30 40 | 30 40 | |||||||
| 6000 | 30 40 | |||||||||
