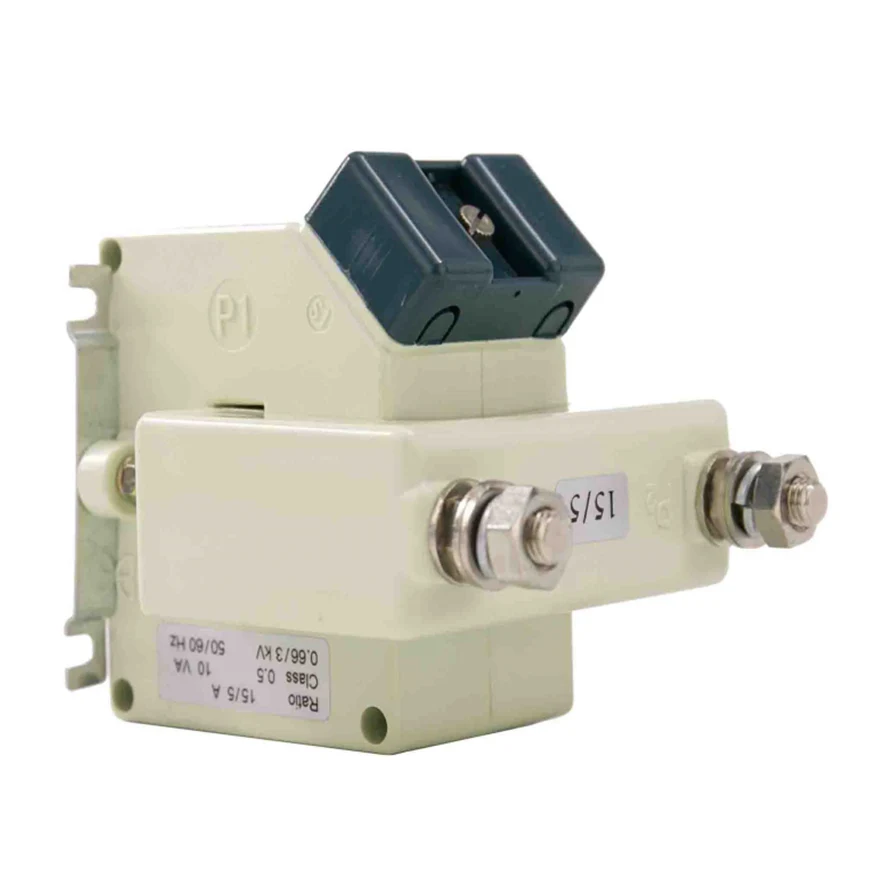

The BH-0.66 Series G Current Transformers are designed to meet the demanding requirements of modern electrical systems, offering high accuracy, reliability, and durability. These transformers are widely used in energy measurement, protection, and control applications across various industries.
High Precision Measurement:
The BH-0.66 Series G Current Transformers provide exceptional accuracy, ensuring reliable measurement of current in both low and high-power systems.
Compact and Robust Design:
With a compact and lightweight design, these transformers are easy to install and integrate into existing systems. The robust construction ensures long-term performance even in challenging environments.
Wide Current Range:
The series supports a broad range of primary currents, making it suitable for diverse applications, from residential to industrial settings.
Safety and Compliance:
Compliant with international standards, the BH-0.66 Series G Current Transformers are designed with safety in mind, ensuring reliable operation and protection against electrical faults.
Versatile Applications:
Ideal for use in energy metering, power monitoring, and protection relays, these transformers are versatile and adaptable to various electrical systems.
• Rated Voltage: 0.66 kV
• Frequency: 50/60 Hz
• Accuracy Class: 0.2, 0.5, 1.0
• Primary Current Range: Up to 5000A
• Secondary Current: 1A or 5A
• Insulation Class: Class A or Class B
• Mounting Options: DIN rail, panel, or through-hole mounting
Applications:
• Energy metering and billing systems
• Power quality monitoring
• Protection and control systems
• Industrial automation
Wire connecting type.Mainly used for instrumentationand metrering of current less than 400Amps.High accuracy class and big burdens,No need for multiplecabil cros sing.

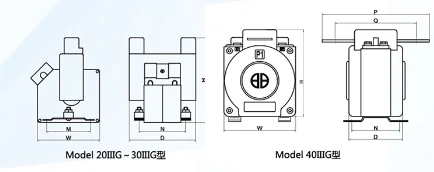

| Model | Outline Dimension(mm) | Irstalational Dimersion(mm) | Wining Dimersion(mm) | Installational Method | ||||||
| W | H | D | M | N | P | Q | M(φ) | |||
| 20IIIG | 70 | 115 | 75 | 53 | 54 | M5 | J | |||
| 30IIIG | 93 | 116 | 90 | 57 | 63 | M5 | K | |||
| 40IIIG | 100A | 97 | 132 | 70 | 64 | 66 | 145 | 110 | Φ10 | L |
| 250A | 175 | 140 | Φ10 | L | ||||||
| 300A | 180 | 145 | Φ13 | L | ||||||
| 400A | 190 | 150 | Φ13 | L | ||||||
| Model | 20IIIG | 30IIIG | 40IIIG | |
| Accuracy Class | 0.5 1 | 0.2 0.5 | 02 0.5 | |
|
Primary Current/Secondary Current(A) |
Rated Burden(VA) | |||
| 5 | 5 | 5 10 | 5 10 | 10 15 |
| 10 | 5 10 | 5 10 | 10 15 | |
| 15 | 5 10 | 5 10 | 10 15 | |
| 20 | 5 10 | 5 10 | 10 15 | |
| 25 | 5 10 | 5 10 | 10 15 | |
| 30 | 5 10 | 5 10 | 10 15 | |
| 40 | 5 10 | 5 10 | 10 15 | |
| 50 | 5 10 | 5 10 | 10 15 | |
| 60 | 5 10 | 5 10 | 10 15 | |
| 75 | 5 10 | 5 10 | 10 15 | |
| 100 | 5 10 | 5 10 | 10 15 | |
| 150 | 5 10 | 10 15 | ||
| 200 | 10 15 | |||
| 250 | 10 15 | |||
| 300 | 10 15 | |||
| 400 | 10 15 | |||
