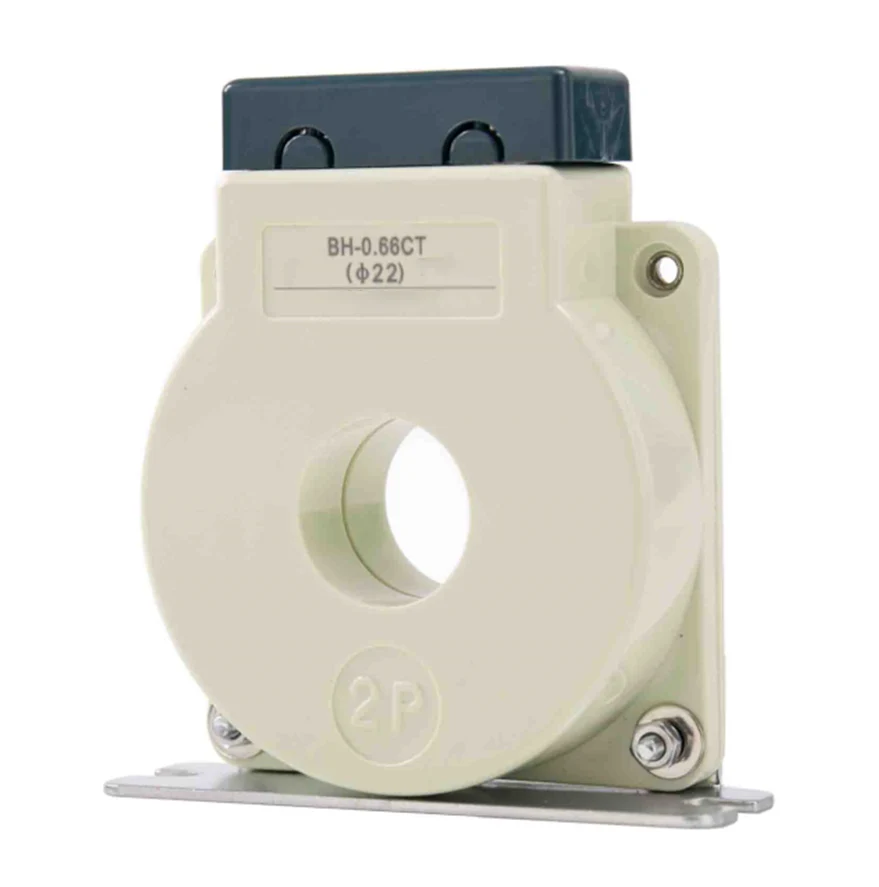

The BH-0.66 Series V Current Transformers are designed for precise current measurement and monitoring in low-voltage electrical systems. These transformers are widely used in energy management, power distribution, and industrial applications, ensuring reliable and accurate performance.
. High Accuracy: The BH-0.66 Series V offers exceptional measurement accuracy, meeting international standards for current transformers.
. Compact Design: Its compact and lightweight construction allows for easy installation in limited spaces.
. Wide Current Range: Suitable for a broad range of current measurements, making it versatile for various applications.
. Durable Construction: Built with high-quality materials, ensuring long-term reliability and resistance to environmental factors.
. Safety Compliance: Complies with relevant safety and performance standards, providing peace of mind in critical applications.
• Energy management systems
• Power distribution networks
• Industrial automation
• Renewable energy systems
Technical Specifications:
• Rated Voltage: 0.66 kV
• Frequency: 50/60 Hz
• Accuracy Class: 0.5, 1.0
• Insulation Level: 3 kV
• Operating Temperature: -25°C to +70°C
Round window,with window sixe from φ15 toφ130.Fitssingle and multiple cables.Mainly used for instrumentationand metering.Flame retardant PC casing.Multiple choices of externaldesign to meet special special requirements.

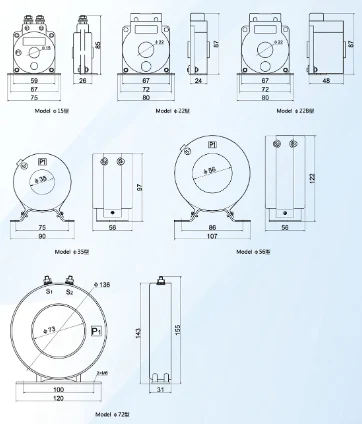

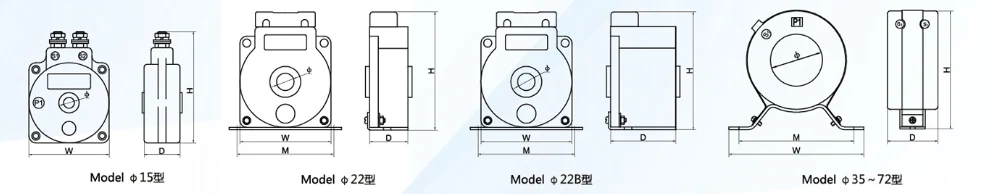

| Model | Outline Dimension(mm) | Window Dimension(mm) | Instalational Dimension(mm) | Installational Method | ||
| W | H | D | Φ | M | ||
| φ15 | 59 | 85 | 26 | 15 | I | |
| φ22 | 67 | 87 | 24 | 22 | 72 | H |
| φ22B | 67 | 87 | 48 | 22 | 72 | H |
| φ 35 | 90 | 97 | 56 | 35 | 75 | H |
| φ56 | 107 | 122 | 56 | 56 | 86 | H |
| φ72 | 120 | 155 | 31 | 73 | 100 | H |
| Model | φ15 | φ22 | φ22B | φ35 | φ56 | φ72 | |
| Cable Diameter | φ15 | φ22 | φ22 | φ35 | φ56 | φ73 | |
| Accuracy Class | 0.5 1 | 0.5 1 | 0.2 0.5 1 | 02 0.5 1 | 0.2 0.5 | 0.2 0.5 | |
|
Primary Current/Secondary Current(A) |
Rated Burden (VA) | ||||||
| 50 | 5 | 2.5 | |||||
| 60 | 25 | ||||||
| 75 | 25 | 2.5 | 25 | ||||
| 100 | 25 | 25 | 2.5 5 | 25 | |||
| 150 | 25 | 2.5 5 | 5 75 | 25 5 | |||
| 200 | 25 | 5 | 10 | 5 | |||
| 250 | 5 | 10 | 5 | 5 | |||
| 300 | 5 10 | 5 15 | 5 | 5 | |||
| 400 | 5 10 | 5 15 | 5 | 5 | |||
| 500 | 10 | 10 | 5 | ||||
| 600 | 10 | 10 | 5 | ||||
| 750 | 5 10 | 5 10 | |||||
| 1000 | 15 | 10 | |||||
| 1200 | 15 | ||||||
