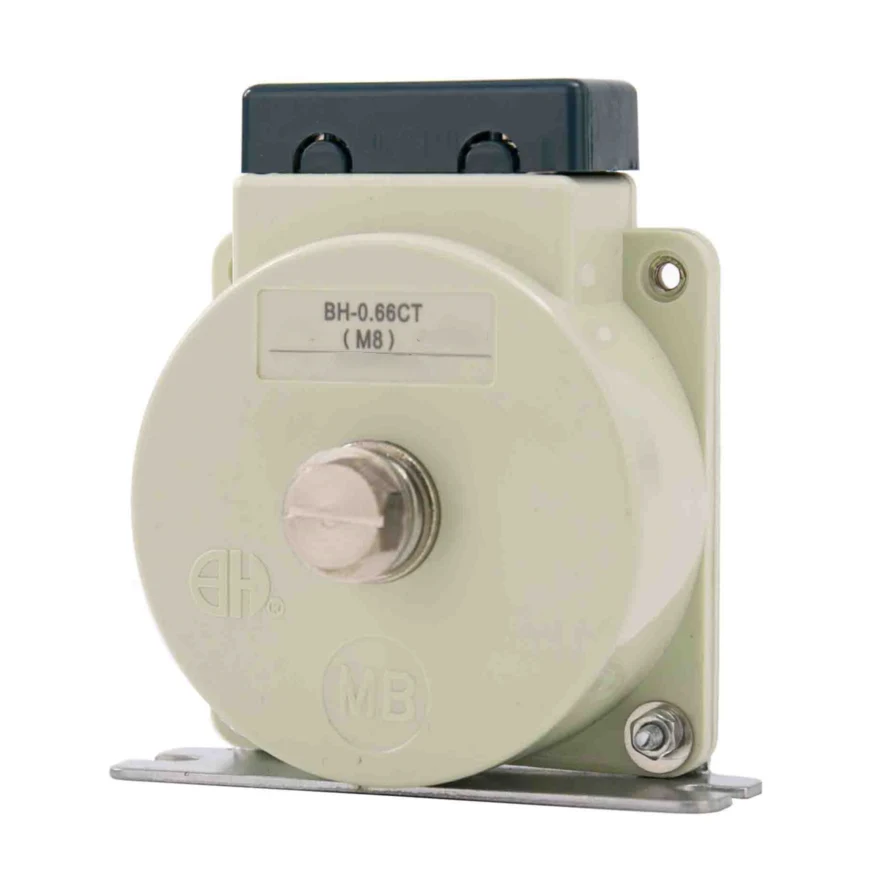

The BH-0.66 Series M Current Transformers are engineered for precise current measurement and monitoring across a variety of electrical systems. Widely utilized in power distribution, energy management, and industrial applications, these transformers ensure accurate and reliable current sensing.
High Accuracy: The BH-0.66 Series M delivers exceptional measurement accuracy, making it perfect for applications that demand precise current monitoring.
Compact Design: Featuring a compact and robust structure, these transformers are easy to install and integrate into existing systems, saving space and reducing installation time.
Wide Range of Ratings: The series supports a broad spectrum of current ratings, catering to diverse application needs and ensuring compatibility with various electrical setups.
Durable Construction: Constructed with high-quality materials, the BH-0.66 Series M is designed to endure harsh environmental conditions, ensuring long-term reliability and performance.
Safety Compliance: These current transformers meet international safety and quality standards, providing users with confidence in critical applications.
Versatile Applications: Suitable for energy metering, protection relays, and monitoring systems, the BH-0.66 Series M is a versatile solution for both residential and industrial environments.
Wire connecting type,Mainly used for small currentmetering,Filled with epoxy resin inside casing.Designed tofulfill small space and small current requirment bywire connecting via the bolt.

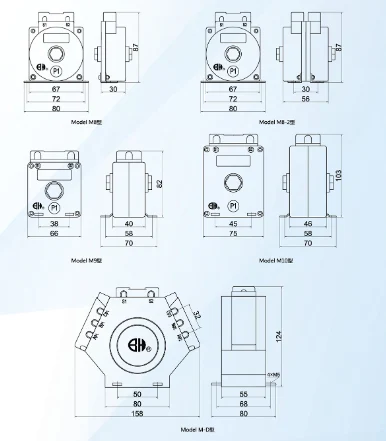

| Model | Outline Dimension(mm) | Prineryconnedionel(mm) | Insalational Dimersion(mm) | Instalational Method | |||
| W | H | D | M | N | |||
| M8 | 67 | 87 | 30 | M8 | 72 | HI | |
| M8-2 | 67 | 87 | 56 | M8 | 72 | 31 | HI |
| M9 | 66 | 82 | 40 | M8 | 38 | 58 | AB |
| M10 | 75 | 103 | 46 | M8 | 45 | 58 | A B |
| M-D | 50 | 68 | A | ||||

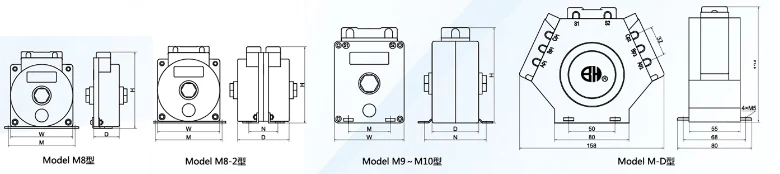

Diagram
| Model | M8 | M8-2 | M9 | M10 | M-D | |
| Accuracy Cless | 1 | 05 1 | 05 1 | 05 1 | 02 05 | |
|
Pinury Cumant/Secondary Cumat(A) |
Rated Burden(VA) | |||||
| 5 | 5 | 25 | 25 5 | 25 5 | 10 15 | |
| 10 | 25 | 25 5 | 25 5 | 10 15 | ||
| 15 | 25 | 25 5 | 25 5 | 10 15 | ||
| 20 | 25 | 25 5 | 25 5 | 10 15 | ||
| 25 | 25 | 25 5 | 25 5 | 10 15 | ||
| 30 | 25 | 25 5 | 25 5 | 10 15 | ||
| 40 | 25 | 25 5 | 25 5 | 10 15 | ||
| 50 | 25 | 25 5 | 25 5 | 10 15 | ||
| 60 | 25 | 25 5 | 25 5 | 10 15 | ||
| 75 | 25 | 25 5 | 25 5 | 10 15 | ||
| 100 | 25 | 25 5 | 25 5 | 10 15 | ||
| 5+5 | 10 15 | |||||
