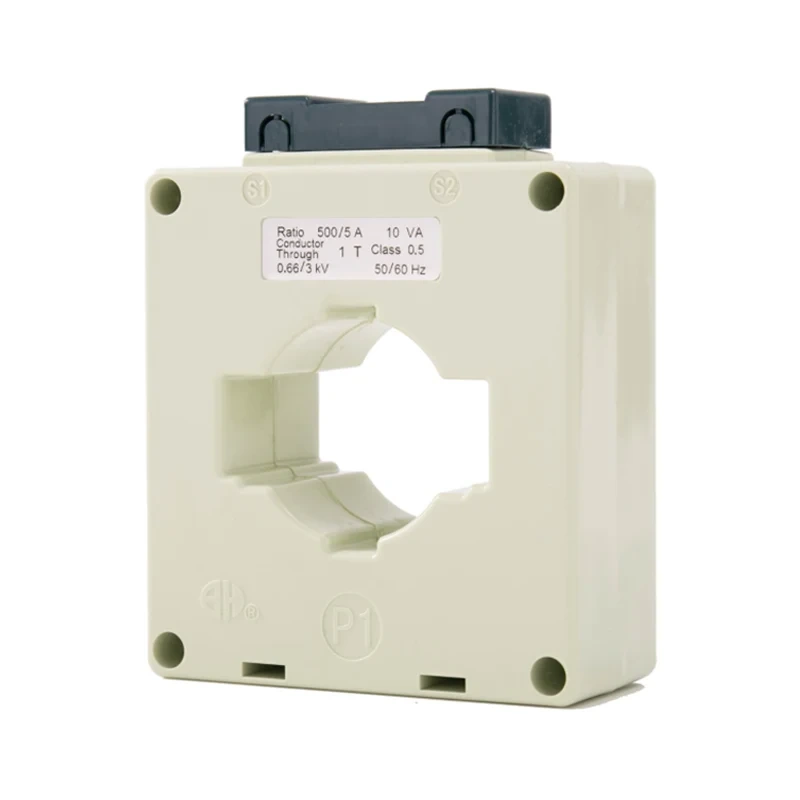

The BH-0.66 Series I Current Transformers are precision instruments designed for accurate measurement and monitoring of electrical currents in various industrial applications. These current transformers are built with high-quality materials and advanced technology to ensure reliable performance and long-term durability.
. High Accuracy: The BH-0.66 Series I Current Transformers offer high accuracy in current measurement, making them suitable for critical applications where precision is essential.
. Wide Application Range: These current transformers can be used in a wide range of industrial settings, including power distribution, energy management, and equipment monitoring.
. Compact Design: The compact design of the BH-0.66 Series I Current Transformers allows for easy installation in tight spaces without compromising performance.
. Robust Construction: Built to withstand harsh operating conditions, these current transformers are durable and reliable even in challenging environments.
. Easy Integration: The BH-0.66 Series I Current Transformers are designed for easy integration into existing electrical systems, making them ideal for retrofitting or upgrading projects.
Rectangular shape with stepped window to fit bus bar as well as single or multicables.main applications are metering and instrumentation,Filled with epoxy resin inside casing.Full,complete ratio range with six sizes for more application choices.With its enhanced burden feature,30x30Israted burden is able to reach 5 to 10VA with the primary current lower fhan 100A,when the turns of the cable going through the core are 2 to 3.
|

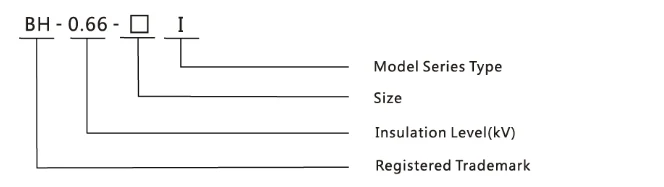

Model |

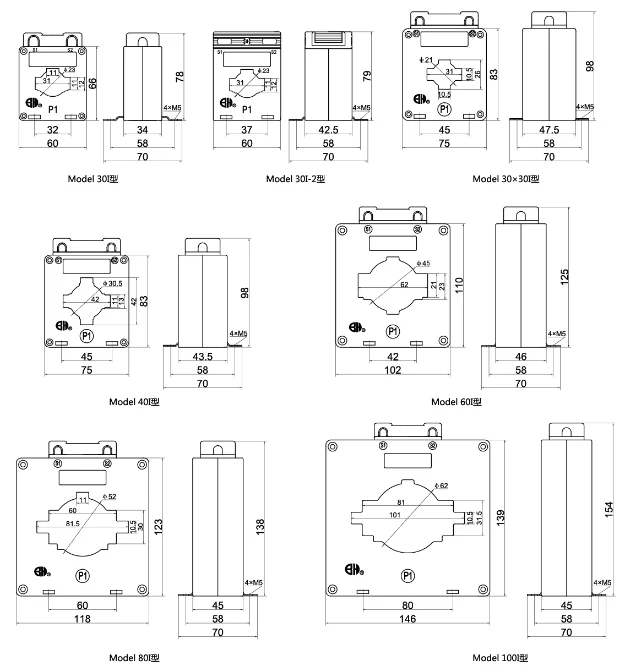

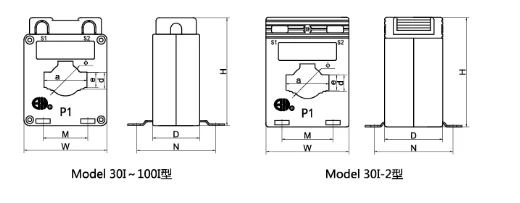

Outline Dimension(mm) | Window Dimension(mm) | Installational Dimension(mm) | Installational Method | ||||||||
| W | H | D | a | e | d | Φ | A | B | ||||
| M | N | M | N | |||||||||
| 30I | 60 | 78 | 34 | 31 | 11 | 12 | 23 | 32 | 58 | 40 | 57 | A B C E |
| 30x30I | 75 | 98 | 47.5 | 31 | 10.5 | 21 | 45 | 58 | 52 | 66 | A B E | |
| 40I | 75 | 98 | 43.5 | 42 | 11 | 13 | 30.5 | 45 | 58 | 52 | 66 | A B C E |
| 60I | 102 | 125 | 46 | 62 | 21 | 23 | 45 | 42 | 58 | 50 | 69 | A B C E |
| 80I | 118 | 138 | 45 | 81.5 | 10.5 | 30 | 52 | 60 | 58 | A B E | ||
| 100I | 146 | 154 | 45 | 101 | 10.5 | 31.5 | 62 | 80 | 58 | A B E | ||
| 30I-2 | 60 | 79.5 | 42.5 | 31 | 11 | 12 | 23 | 37 | 58 | 45 | 64 | A B E |
| Model | 30I | 30x30I | 40I | 60I | 80I | 100I | 30I-2 | |
| Cable Diameter | φ23 | φ21 | φ30.5 | φ45 | φ52 | φ62 | φ23 | |
| Max Bushar Size/QTY | 30x10/1 | 30x10/1 | 40x10/1 |
60x10/1 60x6/1-2 |
80x10/1 60x10/1-2 |
100x10/1 80x10/1-2 |
30x10/1 | |
| Accuracy Class | 0.5 1 | 0.5 1 | 0.5 1 | 0.2 0.5 | 0.2 0.5 | 0.2 0.5 | 0.2S 0.5 1 | |
|
Primary Current/Secondary Current(A) |
Rated Burden (VA) | |||||||
| 15 | 5 | 25(5) | 25(4) | 2.5(5) | ||||
| 20 | 25(4) | 25(3) | 2.5(4) | |||||
| 25 | 25(3) | 25(2) | 2.5(3) | |||||
| 30 | 25(3) | 25(2) | 2.5(3) | |||||
| 40 | 25(2) | 25(2) | 2.5(2) | |||||
| 50 | 25(2) | 2.5 | 2.5(2) | |||||
| 60 | 25(2) | 2.5 | 2.5(2) | 2.5 | ||||
| 75 | 2.5 | 25 5 | 2.5 | 2.5 | ||||
| 100 | 2.5 | 25 5 | 2.5 | 2.5 | ||||
| 150 | 2.5 | 5 10 | 5 | 25 | 2.5 | |||
| 200 | 5 | 10 15 | 5 | 5 | 5 | |||
| 250 | 5 | 15 20 | 5 | 5 | 5 | |||
| 300 | 5 | 20 | 5 | 5 | 5 | 5 | ||
| 400 | 5 | 20 | 5 | 5 | 5 | 5 | ||
| 500 | 10 | 5 10 | 10 | |||||
| 600 | 10 | 5 10 | 5 10 | |||||
| 750(800) | 10 | 5 10 | 5 10 | 5 10 | ||||
| 1000 | 15 20 | 15 20 | 15 20 | |||||
| 1200(1250) | 20 | 20 | 20 | |||||
| 1500 | 20 | 20 | 20 | |||||
| 2000 | 20 | 20 | 20 | |||||
| 2500 | 30 | 30 | ||||||
| 3000 | 30 | |||||||
