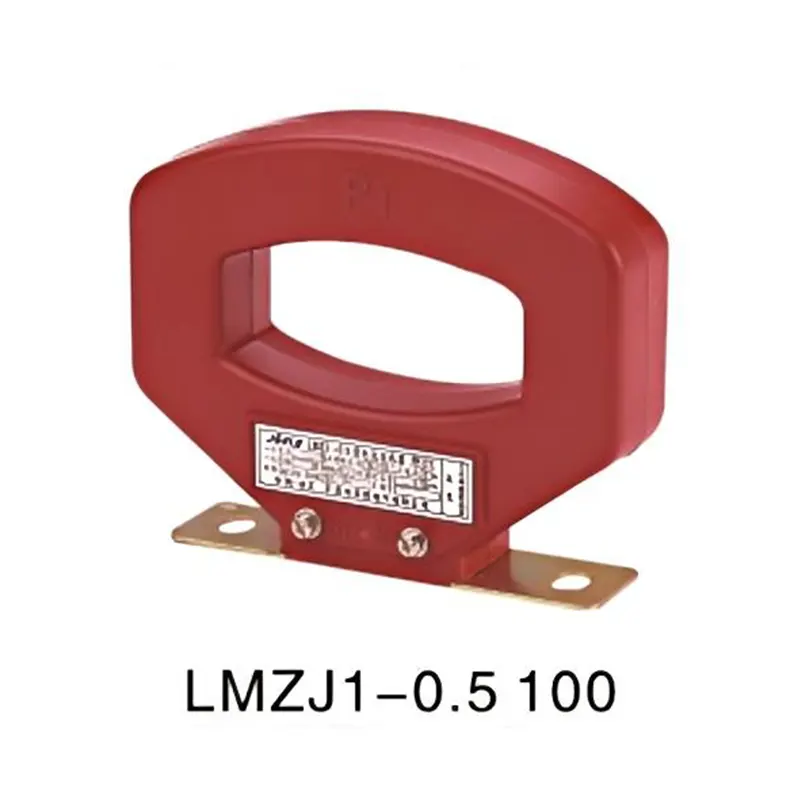

The Lmzj1-0.5-100 Current Transformers is characterized by high accuracy, low phase angle error, and exceptional linearity, ensuring the exact measurement of current levels. These current transformers are compact in size, facilitating easy installation and making them suitable for a wide range of electrical system configurations. Constructed with durable materials, LMZJ1-0.5-100 CURRENT TRANSFORMERS are built to last, providing long-term stability and dependable operation. Count on LMZJ1-0.5-100 CURRENT TRANSFORMERS for precise current measurement and effective protection of your electrical systems.
| Rated voltage | 500V |
| Rated frequency | 50Hz |
| Rated primary current | 10A, 12.5A, 15A, 20A,25A..,6000A |
| Rated secondary current | 5A;1A |
|
Secondary load power factor |
0.8(delay) |
| Rated output | 2.5VA, 5VA, 10VA, 20VA |
| Accuracy | 0.2;0.2S;0.5;0.5S |
| Isolation resistance |
isolation resistance of primary winding to secondary winding and to earth ≥20MΩ |
|
Power frequency withstand voltage |
Withstand valid value of primary winding to secondary winding and to earth ≥ 3kV |
