BH-0.66 Series F Current Transformers

As a professional BH-0.66 Series F Current Transformers manufacturer, you can rest assured to buy BH-0.66 Series F Current Transformers from our factory and Sehnaider Electric will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

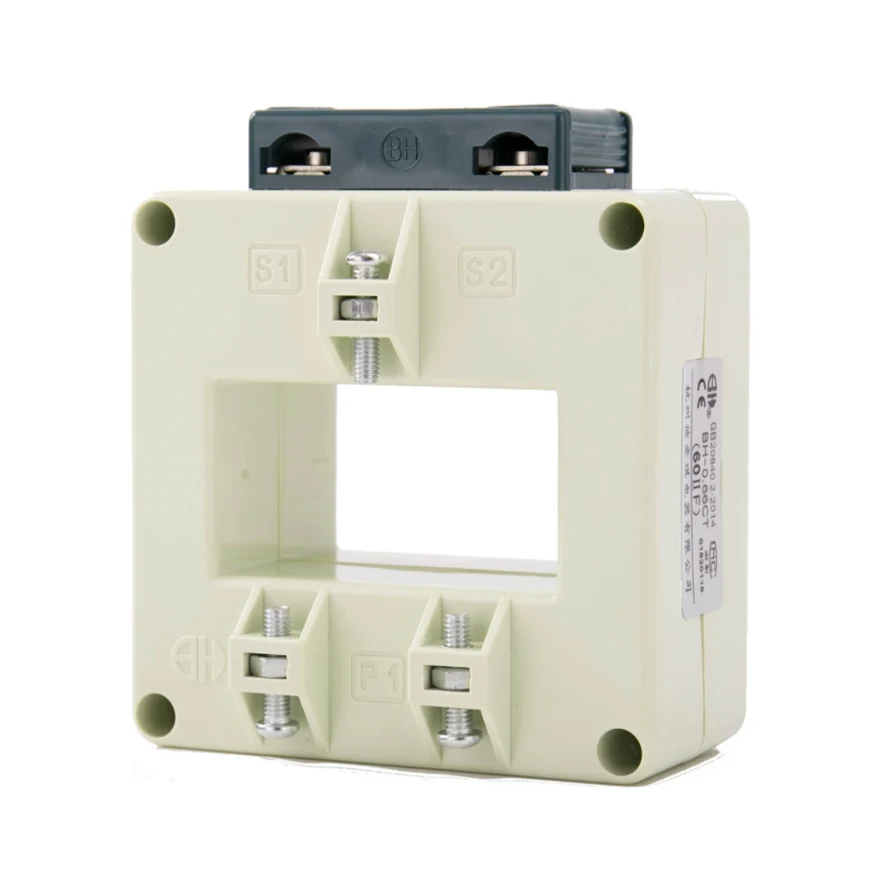

The BH-0.66 Series F Current Transformers are precision instruments designed for accurate measurement and monitoring of electrical currents in various industrial applications. These current transformers are built with high-quality materials and advanced technology to ensure reliable performance and long-term durability.

Features:

.High Accuracy: The BH-0.66 Series F Current Transformers offer high accuracy in current measurement, making them suitable for critical applications where precision is essential.

.Wide Range: These current transformers have a wide measurement range, allowing them to be used in diverse electrical systems with different current levels.

.Compact Design: The compact and lightweight design of the BH-0.66 Series F Current Transformers makes them easy to install and integrate into existing systems.

.Excellent Performance: With excellent linearity and low phase angle error, these current transformers deliver consistent and reliable performance under various operating conditions.

.Safety Standards: The BH-0.66 Series F Current Transformers comply with international safety standards, ensuring safe operation in industrial environments.

A patented product.Flip-open caps.Fits for both cable and bus bar.Maily used for instrumentation and metering.

Combined and improved the features of both Series I and II.For better structure,easier installation and wiring.Highly recommended.

Specifications and Dimensions

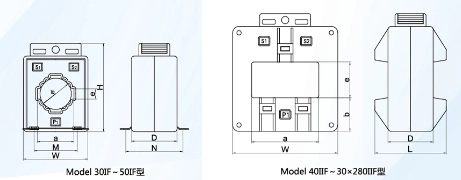

Model	Outline Dimension(mm)					Window Dimension(mm)			Instalrional Dimension(mm)				Installational Methed
	W	H	b	D	L	a	e	Φ	A		B
	W	H	b	D	L	a	e	Φ	M	N	M	N
30IF	60	77		36		32	11	30	37	57	45	59	A B E G
401F	76	97		51		42	12	36			57	74	B E G
50IF	88	109		52		51	13	46			69	75	B E G
40IIF	78	106	28	51	73	44	34						D
50IIF	90	110	30	51	73	54	34						D
60IIF	100	114	32	51	73	63	34						D
80IIF	122	114	32	51	73	83	34						D
100IIF	144	114	32	51	73	103	34						D
120IIF	178	143	35	51	73	129	56						D
100x50IIF	144	135	32	51	73	103	55						D
100x50AIIF	136	147	38	51	73	103	55						D
220x50IIF	280	190	60	65	87	225	55						D
170x120IIF	230	200	31.5	60	82	170	122						D
60x300IIF	165	425	47	60	82	67	315						D
30x280IIF	125	380	40	50	72	35	285						D

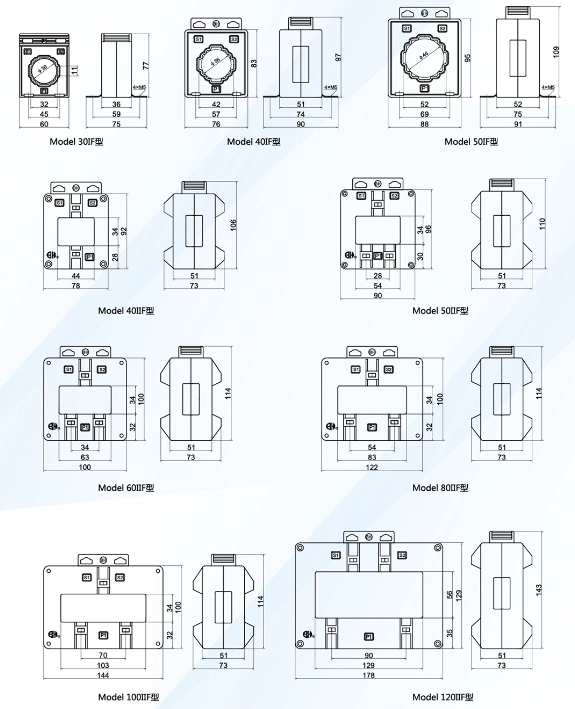

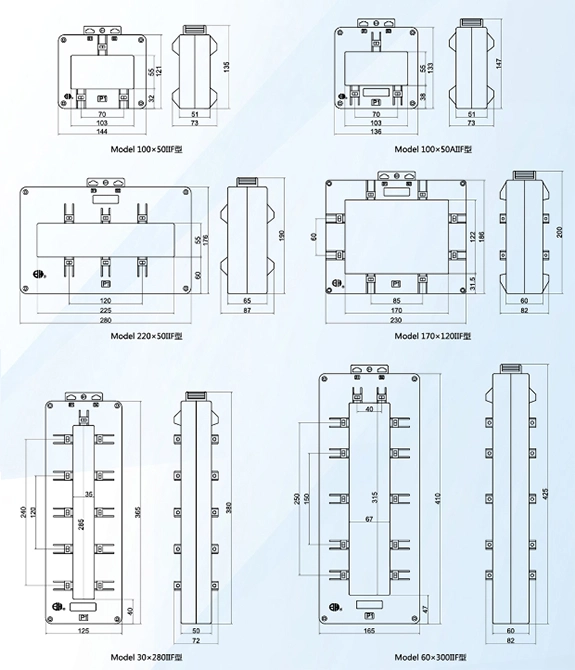

Diagram

BH-0.66 Series F Current Transformers

Technical Parameters

Model		30IF	40IF	50IF	40IIF	50IIF	60IIF	80IIF	100IIF
Cable Diameter		Φ30	Φ36	Φ46
Max Bushar Size/QTY		30x10/1	40x10/1	50x10/1	40x10/1-2	50x10/1-2	60x10/1-2	80x10/1-2	100x10/1-2
Accuracy Class		0.5 1	0.5 1	0.2 0.5	0.2 0.5	02 0.5	0.2 0.5	0.2 0.5	0.2 0.5
Primary Current/Secondary Current(A)		Rated Burden(VA)
15	5	25(5)	2.5(5)
20		2.5(4)	2.5(4)
25		25(3)	2.5(3)
30		25(3)	2.5(3)
40		25(2)	2.5(2)
50		25(2)	2.5(2)
60		25(2)	2.5(2)
75		2.5	2.5
100		2.5	2.5
150		25	2.5
200		5	5	5	5
250		5	5	5	5	5	5
300		5	5	5	5	5	5
400		5	5	5	5	5	5	5
500			10	10	10	10	10	10	10
600			10	5 10	5 10	5 10	5 10	5 10	5 10
750(800)			10	5 10	5 10	5 10	5 10	5 10	5 10
1000				15	15	15	15	15	15
1200(1250)				20	20	20	20	20	20
1500(1600)				20		20	20	20	20
2000							20	20	20
2500								30	30
3000									30
