In modern industrial and commercial environments, electrical safety and system reliability are top priorities. The HGL Series Load Isolation Switch has become one of the most trusted solutions in this field. Known for its durability, high performance, and stable isolation capability, it provides reliable protection for power distribution systems. Designed and manufactured by Zhejiang Sehnaider Electric Co.,Ltd., this series combines advanced technology with practical design, meeting international standards for electrical isolation and safety control.
As I explored this product for my own applications, I couldn't help but ask myself: What exactly makes the HGL Series Load Isolation Switch so effective? Let's dive into its structure, function, and technical advantages to find out.

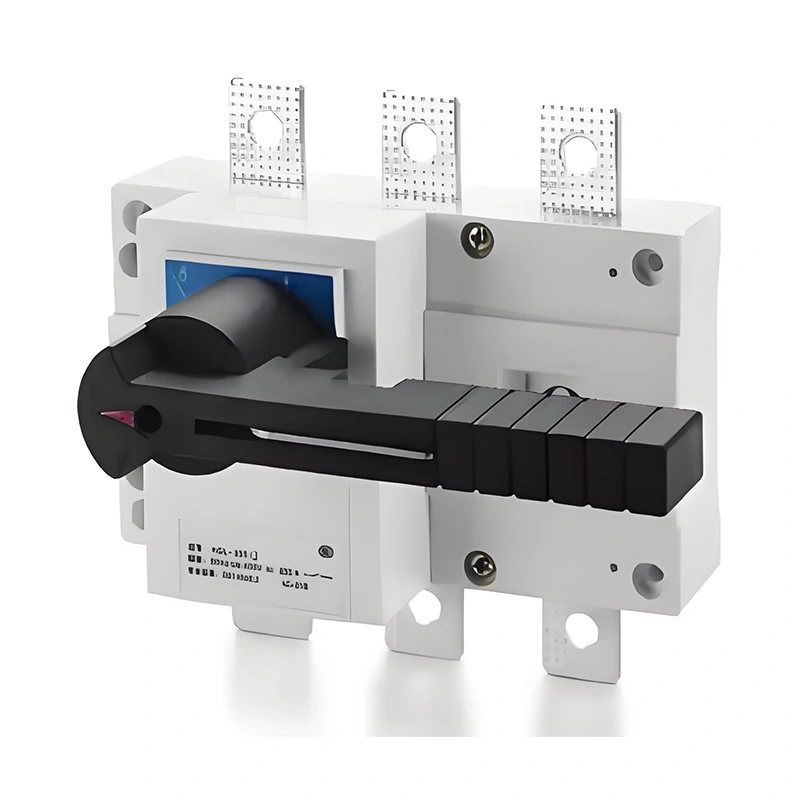

The HGL Series Load Isolation Switch is a manually operated disconnect switch designed to isolate electrical circuits under load conditions. It ensures safe operation, maintenance, and repair by completely disconnecting the power supply from the circuit.
It is widely used in low-voltage power distribution systems, motor control centers, and industrial control cabinets. By offering visible disconnection and strong mechanical endurance, the switch helps operators quickly and safely isolate circuits during maintenance or emergencies.
Every power distribution network needs a reliable point of isolation. The HGL Series Load Isolation Switch provides that assurance. Its primary role is to protect personnel and equipment by ensuring that circuits can be safely disconnected from the power source.
Without a reliable load isolation switch, workers face higher risks of electrical shock and accidental short circuits during repairs. This product's mechanical interlock and clear on/off indicators minimize such risks, ensuring operational safety and compliance with IEC standards.
The HGL Series is designed for high reliability, long life, and easy operation. Below are some of its most significant advantages:
High Breaking Capacity: Capable of safely breaking load current without arc flash hazards.
Compact Design: Space-saving, making it suitable for various panel types.
Visible Isolation: Clear ON/OFF indication for safe operation.
Easy Installation: Modular structure allows quick mounting and maintenance.
Durable Contacts: Silver alloy contacts ensure excellent conductivity and extended service life.
Optional Accessories: Handle, door interlock, auxiliary contacts, and padlocking for added safety.
| Parameter | Specification |
|---|---|
| Rated Current (In) | 63A – 1600A |
| Rated Operational Voltage | AC 380V / 690V |
| Rated Insulation Voltage | 800V |
| Rated Short-time Withstand Current | 10kA / 50kA (Depending on model) |
| Frequency | 50Hz / 60Hz |
| Poles | 3P / 4P |
| Operation Type | Manual Rotary Handle |
| Mechanical Endurance | ≥ 10,000 Operations |
| Installation Mode | Panel / Base Mounting |
| Compliance Standard | IEC60947-3 |
| Manufacturer | Zhejiang Sehnaider Electric Co.,Ltd. |
This table highlights how the HGL Series Load Isolation Switch meets industrial requirements for both high-performance and long-lasting operation.
In my experience, using the HGL Series Load Isolation Switch in factory environments has shown excellent stability. It operates smoothly even under harsh conditions—whether in manufacturing plants, data centers, or power distribution panels.
It performs exceptionally well in:
Industrial automation systems
Power distribution and control cabinets
Commercial building circuits
Motor isolation and maintenance
Renewable energy systems (solar or wind power)
The switch guarantees reliable isolation and helps prevent accidental re-energization of equipment, which is crucial in industrial safety management.
Safety is the core of this product's design philosophy. The HGL Series Load Isolation Switch includes mechanical interlocks and clear handle indicators to ensure that operators cannot accidentally engage circuits during maintenance.
The padlock feature allows technicians to secure the switch in the OFF position, ensuring that the system remains completely de-energized while work is being done. This design prevents unauthorized operation and guarantees full compliance with international safety standards.
Choosing the HGL Series Load Isolation Switch from Zhejiang Sehnaider Electric Co.,Ltd. means investing in reliability, safety, and long-term performance. Businesses benefit from:
Reduced downtime during maintenance
Improved electrical safety standards
Lower replacement and maintenance costs
Enhanced operational efficiency
Compatibility with a wide range of control systems
For manufacturers and engineers, these advantages translate into smoother project execution and more reliable system operation.
Q1: What makes the HGL Series Load Isolation Switch different from standard disconnect switches?
A1: Unlike basic disconnect switches, the HGL Series offers higher breaking capacity, visible isolation, and a more compact structure. It also features silver alloy contacts that reduce power loss and extend lifespan.
Q2: Can the HGL Series Load Isolation Switch handle both AC and DC circuits?
A2: Yes, depending on the model specifications, the HGL Series is suitable for both AC and DC circuits, ensuring flexibility across multiple applications.
Q3: How should the HGL Series Load Isolation Switch be installed?
A3: It supports both panel-mounted and base-mounted installation. The switch can be operated directly or through an external handle with an interlocking mechanism for added safety.
Q4: Why should I choose Zhejiang Sehnaider Electric Co.,Ltd. as my supplier?
A4: Zhejiang Sehnaider Electric Co.,Ltd. has decades of expertise in manufacturing electrical equipment. Their HGL Series Load Isolation Switches are produced under strict quality control, meeting IEC standards and ensuring performance consistency across all units.
The HGL Series Load Isolation Switch represents a perfect balance of performance, safety, and reliability. From power distribution panels to complex industrial systems, it ensures smooth operation and safe isolation of electrical circuits.
Whether you are designing new systems or upgrading existing ones, this switch provides long-term dependability that helps safeguard both personnel and equipment.
For more details or custom configurations of the HGL Series Load Isolation Switch, please contact Zhejiang Sehnaider Electric Co.,Ltd. — your trusted partner in industrial electrical solutions. Contact us.
-
