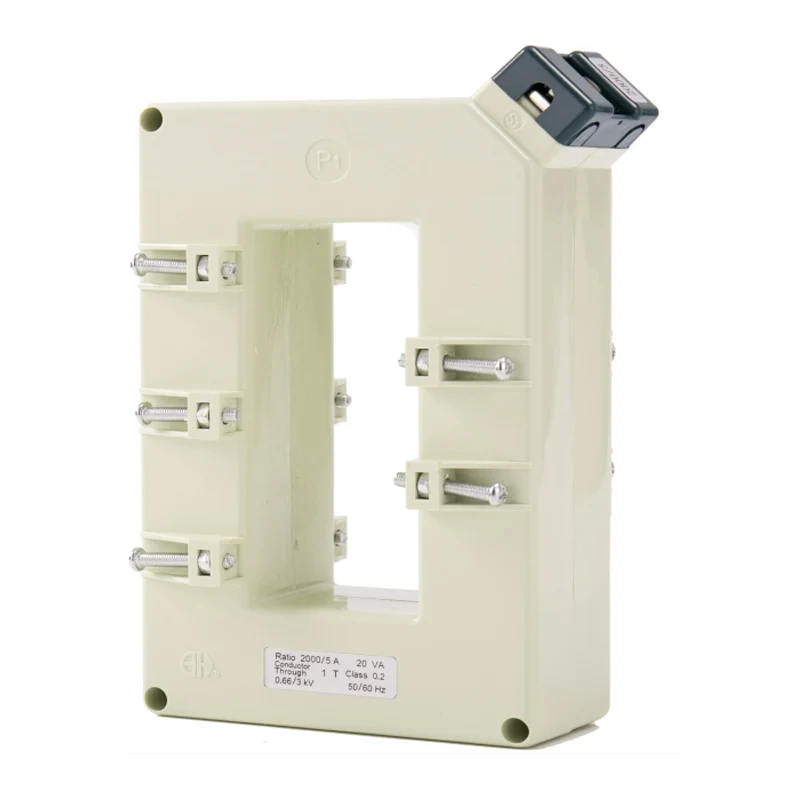

The BH-0.66 SERIES Ⅱ CURRENT TRANSFORMERS are designed to accurately measure and transform high currents into standardized values for monitoring and control purposes. With advanced technology and precision engineering, these current transformers offer reliable performance and durability in various industrial applications.
. High Accuracy: The BH-0.66 SERIES Ⅱ CURRENT TRANSFORMERS provide precise measurements with a high level of accuracy.
. Wide Application: Suitable for use in a wide range of industrial settings, including power distribution, energy management, and equipment monitoring.
. Easy Installation: Designed for easy installation and integration into existing systems, reducing downtime and maintenance costs.
. Robust Construction: Built to withstand harsh operating conditions and ensure long-term performance reliability.
. Compliance: Meets international standards for quality and safety, ensuring compliance with industry regulations.
Rectangular (horizontal) window to fit multiple bus bars as well as cables. Mainly used for instrumentation and metering, Filled with epoxy resin inside casing.Has fourteen sizes with a wide ratio range.Window dimensions can be adjusted to fulfill different customer
requirements.

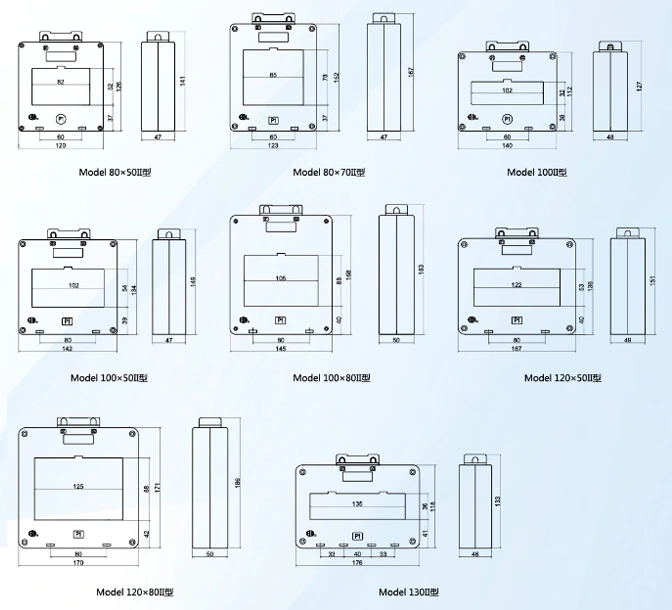

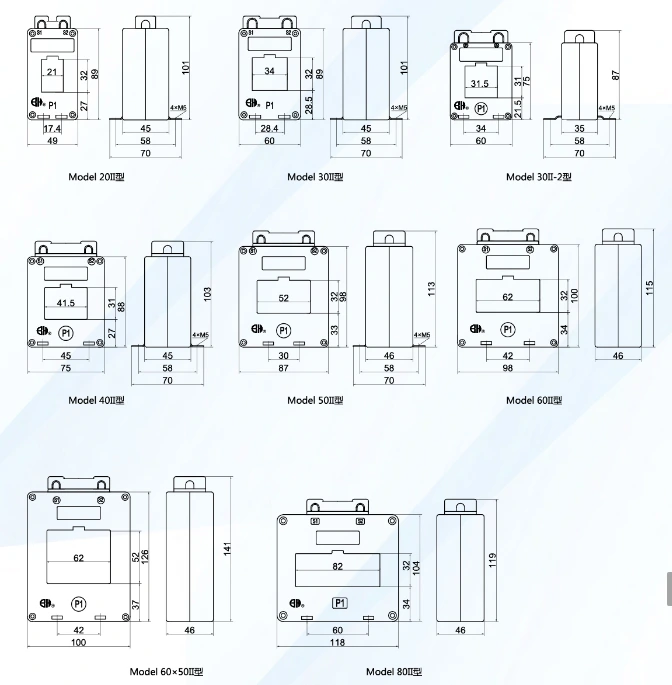

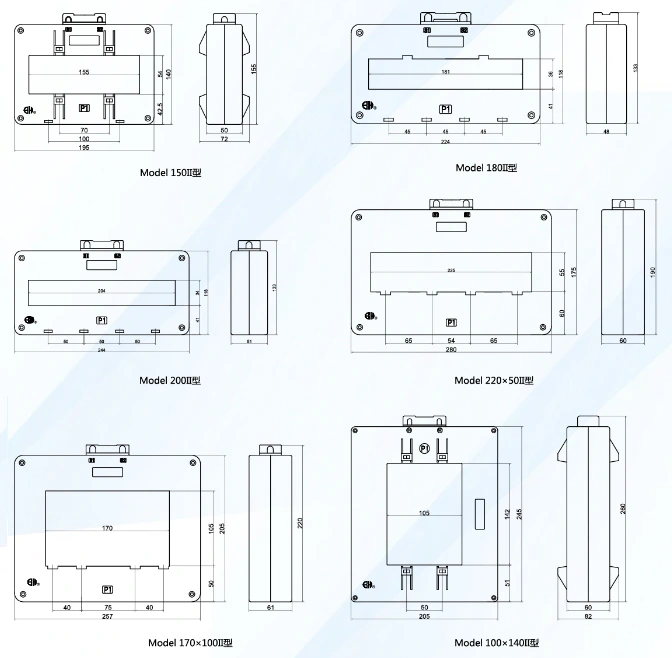

| Model | Cutline Dimension(mm) | Wndow Dimersion(mm) | Instalational Dimension(mm) | Instalational Method | |||||||
| W | H | D | b | a | e | M | N | ||||
| 20II | 49 | 101 | 45 | 27 | 21 | 32 | 17.4 | 58 | |||
| 30II | 60 | 101 | 45 | 28.5 | 34 | 32 | 28.4 | 58 | AE | ||
| 30II-2 | 60 | 87 | 35 | 21.5 | 31.5 | 31 | 34 | 58 | AE | ||
| 40II | 75 | 103 | 45 | 27 | 41.5 | 31 | 45 | 58 | AE | ||
| 50II | 87 | 113 | 46 | 33 | 52 | 32 | 30 | 58 | AE | ||
| 60II | 98 | 115 | 46 | 34 | 62 | 32 | 42 | E F | |||
| 60x50II | 100 | 141 | 46 | 37 | 62 | 52 | 42 | E F | |||
| 80II | 118 | 119 | 46 | 34 | 82 | 32 | 60 | E F | |||
| 80x50II | 120 | 141 | 47 | 37 | 82 | 52 | 60 | E F | |||
| 80x70II | 123 | 167 | 47 | 37 | 85 | 78 | 60 | E F | |||
| 100II | 140 | 127 | 48 | 38 | 102 | 32 | 60 | E F | |||
| 100x50II | 142 | 149 | 47 | 39 | 102 | 54 | 80 | E F | |||
| 100x80II | 145 | 183 | 50 | 40 | 105 | 88 | 80 | E F | |||
| 120x50II | 167 | 151 | 49 | 40 | 122 | 53 | 80 | E F | |||
| 120x80II | 170 | 186 | 50 | 42 | 125 | 88 | 80 | E F | |||
| 130II | 176 | 133 | 46 | 41 | 135 | 36 | 33 | 40 | 33 | E F | |
| 150II | 195 | 155 | 50 | 42.5 | 155 | 54 | 100 | D | |||
| 180II | 224 | 133 | 48 | 41 | 181 | 36 | 45 | 45 | 45 | E F | |
| 200II | 244 | 133 | 51 | 41 | 204 | 34 | 50 | 50 | 50 | E F | |
| 220x50II | 280 | 190 | 60 | 60 | 225 | 55 | 65 | 54 | 65 | E F | |
| 170x100II | 257 | 220 | 61 | 50 | 170 | 105 | 40 | 75 | 40 | E F | |
| 100x140II | 205 | 260 | 60 | 51 | 105 | 142 | 50 | D | |||
| Model | 20II | 30II | 30II-2 | 40II | 50II | 60II | 60x50II | 80II | |
| Max Bushar Size/QTY | 20x10/1-2 | 30x10/1-2 | 30x10/1-2 | 40x10/1-2 | 50x10/1-2 | 60x10/1-2 | 60x10/2-3 | 80x10/1-2 | |
| Accuracy Class | 0.5 1 | 0.5 1 | 0.5 1 | 0.2 0.5 1 | 02 0.5 | 0.2 0.5 | 0.2 0.5 | 0.2 0.5 | |
|
Primary Current/Secondary Current(A) |
Rated Burden (VA) | ||||||||
| 100 | 5 | 2.5 | 25 | 2.5 | 25 | ||||
| 125 | 2.5 | 25 | 2.5 | 2.5 | |||||
| 150 | 25 | 2.5 | 2.5 | 2.5 | 2.5 | ||||
| 200 | 5 | 5 | 5 | 5 | 5 | ||||
| 250 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| 300 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 400 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 500 | 5 | 5 | 10 | 10 | 10 | 10 | 10 | ||
| 600 | 5 | 5 10 15 | 10 | 10 | 10 | 10 | |||
| 750(800) | 5 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | |||
| 1000 | 15 | 15 | 15 | 15 | 15 | ||||
| 1200(1250) | 20 | 20 | 20 | 20 | 20 | ||||
| 1500(1600) | 20 | 20 | 20 | 20 | |||||
| 2000 | 20 | 20 | 20 | ||||||
| 2500 | 30 | 30 | |||||||
