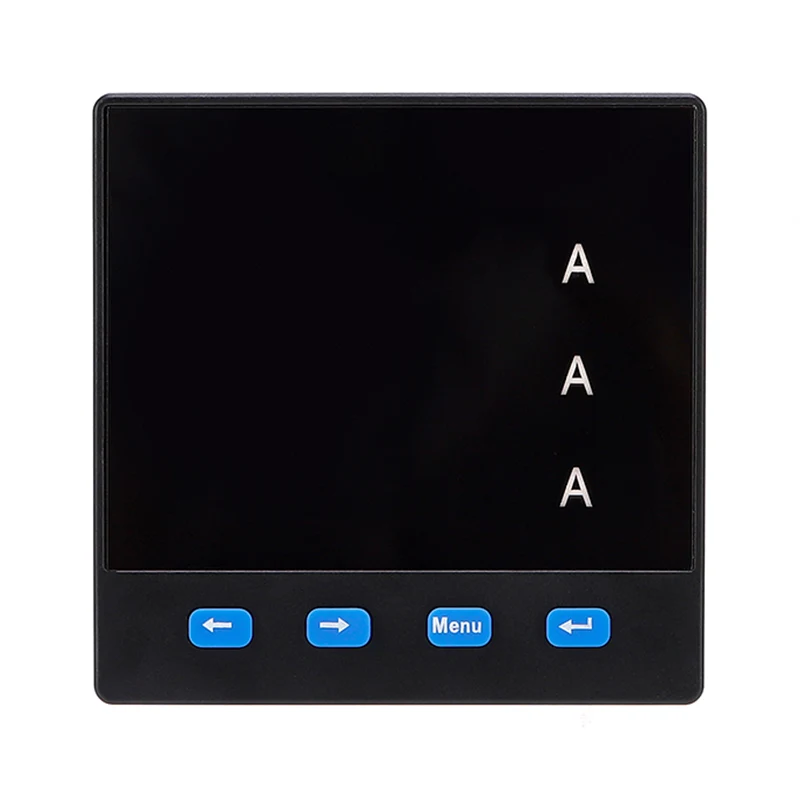

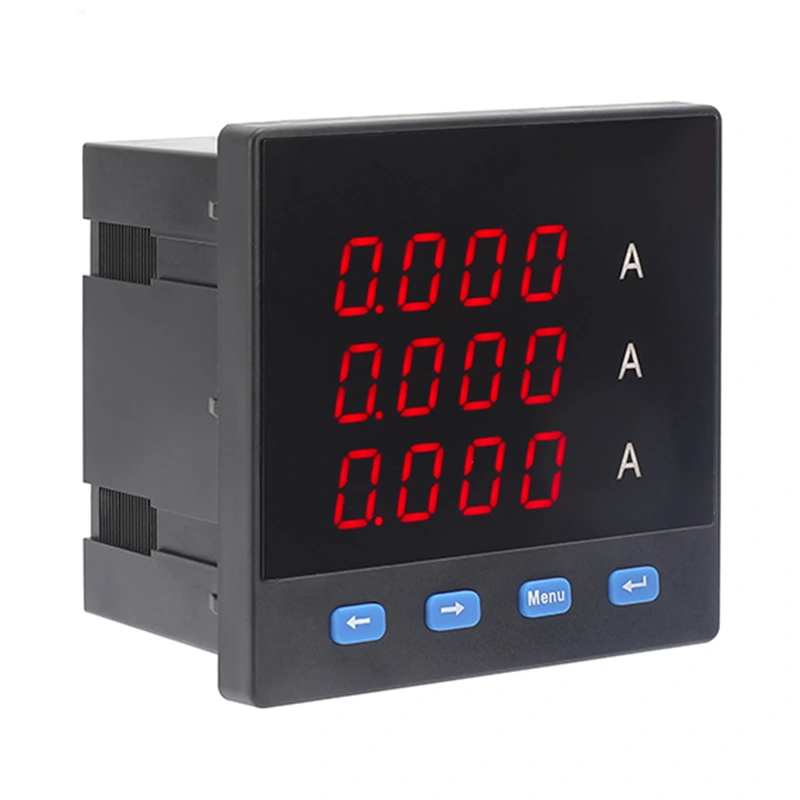

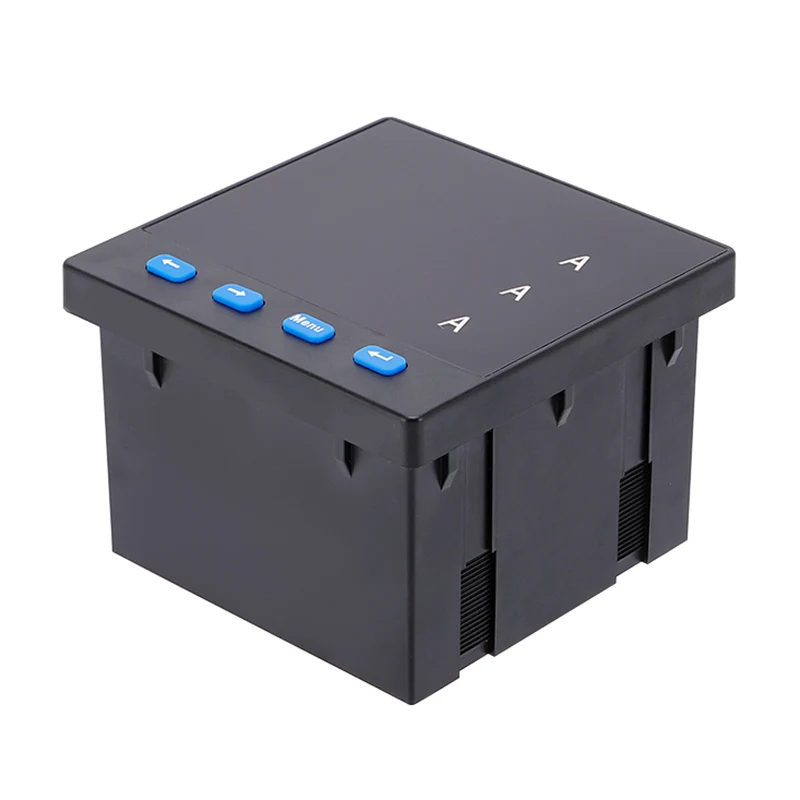

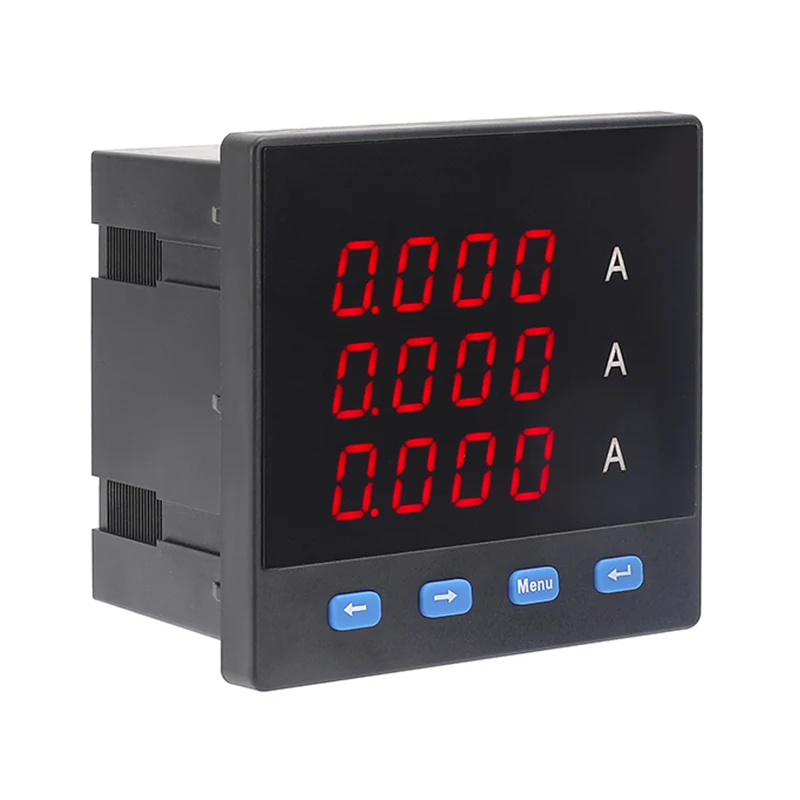

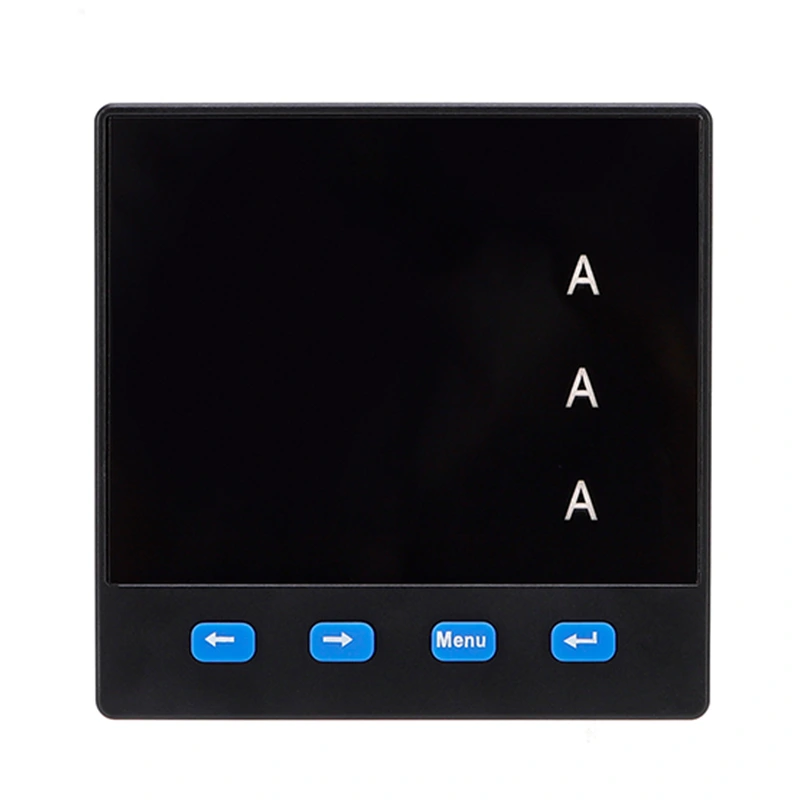

Three-Phase Ammeter

Three-phase ammeters are essential tools for accurately measuring and monitoring electrical currents in three-phase power systems. Designed to provide precise readings of current flow in each phase, these meters play a crucial role in ensuring the efficient and safe operation of industrial and commercial electrical systems.

Outline and Mounting Dimensions

Table Installation Sizes(mm)

General Technical Data

1. Working power supply: AC220V±10% 50/60Hz

2. Power consumption: <1.5W

3. Accuracy: RMS measurement 0.5% grade

4. Working environment: -10°C ~ 50°C

5. Storage environment: -20°C~75°C

6. Insulation: >5MΩ

Display Help

Description of the ammeter display mode

• When the display value<10A, 3 decimals are displayed, i.e.: X.XXX A

• When 10A≤display value<100A, 2 decimals are displayed, i.e.: XX.XX A

• When 100A≤display value<1000A, 1 decimal is displayed, i.e.: XXX.X A

• When 1000A≤displayed value<10000A, no decimal is displayed, i.e.: XXXX A

• When displayed value≥10000A, the KA indicator lights up and the display reads: XX.XX KA

Description of the voltmeter display mode

• When the display value<1KV, 1 decimal is displayed, i.e.: XXX.X V

• When 1KV≤display value<10KV, no decimal is displayed, i.e.: XXXX V

• When 10KV≤display value<100KV, the KA indicator lights up and the display reads: XX.XX KV

• When 100KV≤displayed value<1000KV, the KA indicator lights up and the display reads: XXX.X KV

• When displayed value≥1000KV, the KA indicator lights up and the display reads: XXXX KV

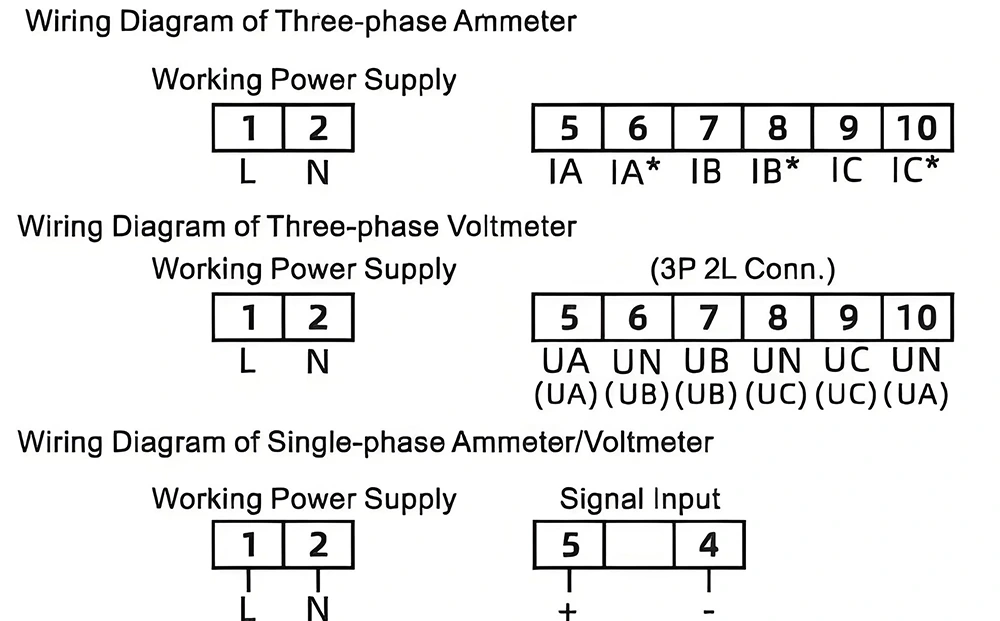

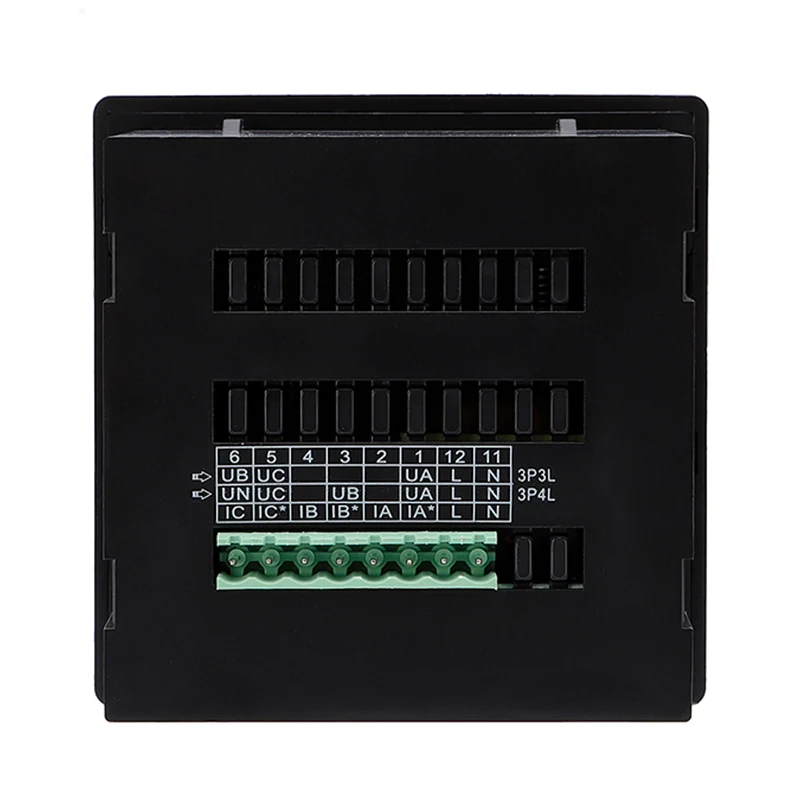

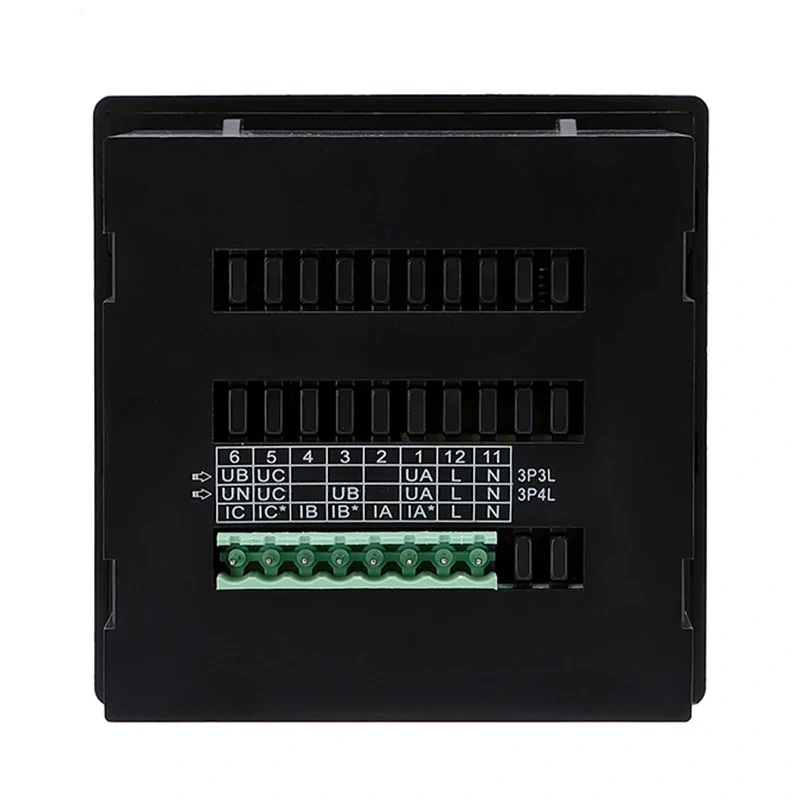

Wiring Diagrams

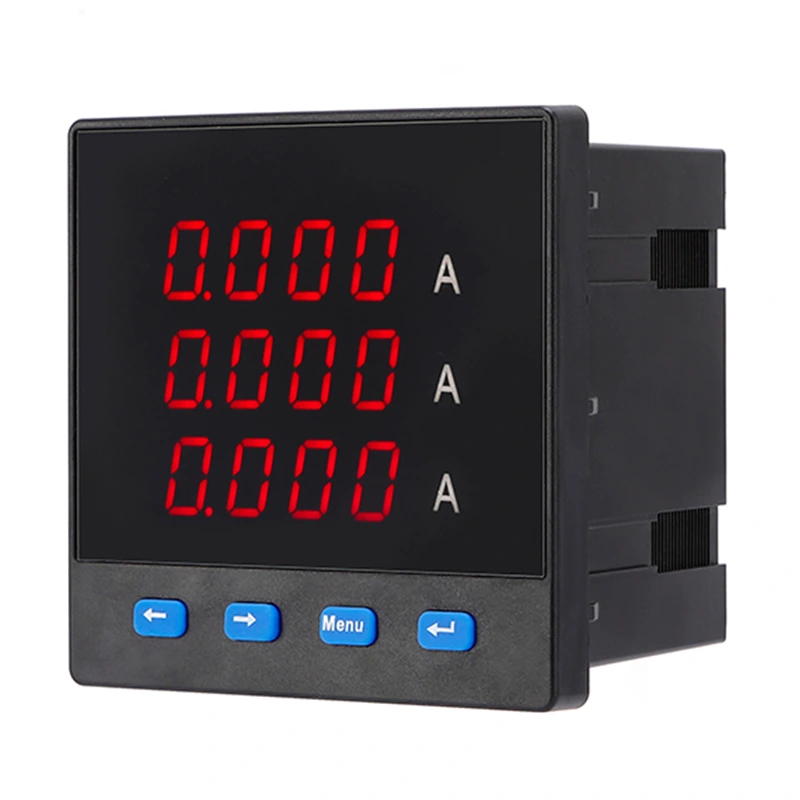

Product Details
