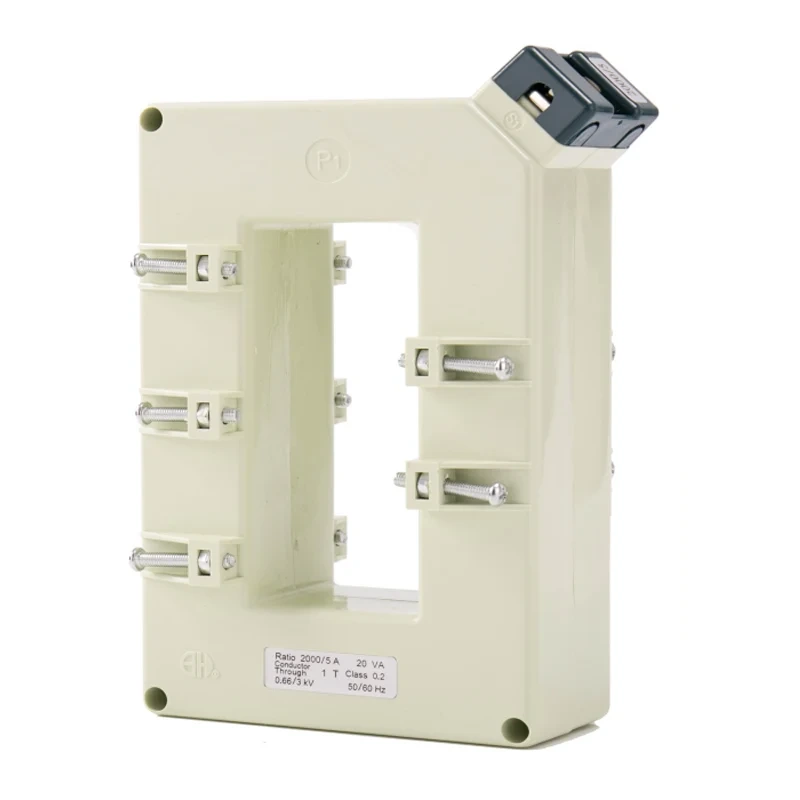

The BH-0.66 Series IV Current Transformers are designed to provide accurate and reliable current measurement in various electrical systems. These transformers are ideal for use in energy management, power monitoring, and protection applications.
. High Accuracy: Ensures precise current measurement for effective monitoring and control.
. Compact Design: Space-saving and easy to install in various electrical panels.
. Robust Construction: Built to withstand harsh environmental conditions, ensuring long-term reliability.
. Wide Current Range: Suitable for a broad range of current levels, making them versatile for different applications.
. Compliance: Meets international standards for safety and performance.
• Energy management systems
• Power distribution networks
• Industrial automation
• Renewable energy systems
Technical Specifications:
• Rated Voltage: 0.66 kV
• Frequency: 50/60 Hz
• Accuracy Class: 0.5, 1.0
• Insulation Level: 3 kV
• Operating Temperature: -25°C to +70°C

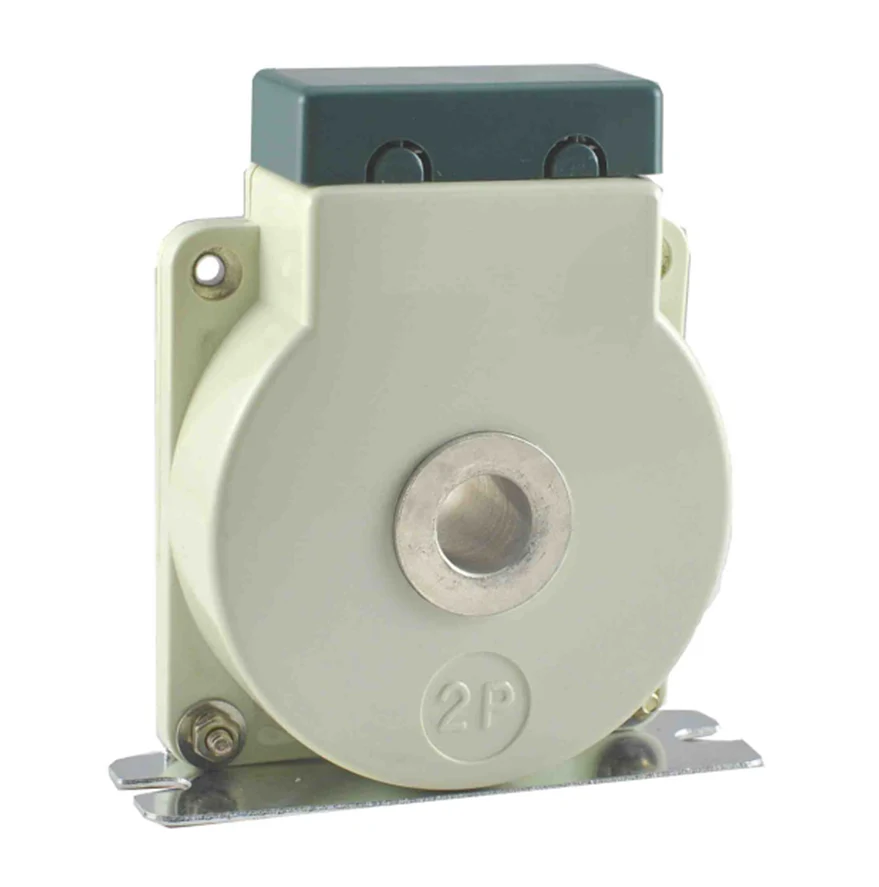

Tubular window.Designed for standard distrbution cabinet.Mainly used for instrumentationand metering.Bus bar can be conn ected and secured with the screw wormgoing through the tubular window,when measuring large current.Space-saving small sixes with multi-functional features.

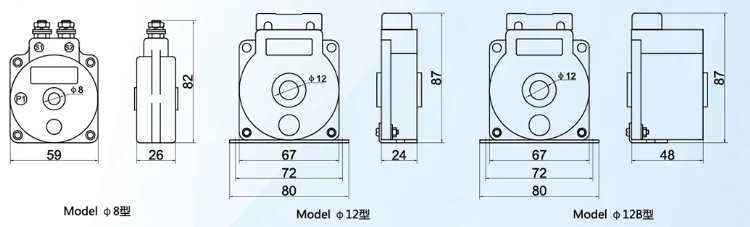

| Model | Outline Dimension(mm) | Window Dimension(mm) | Instalatonal Dimersion(mm) | Installational Method | ||
| W | H | D | Φ | M | ||
| φ8 | 59 | 82 | 26 | 8 | I | |
| φ12 | 67 | 87 | 24 | 12 | 72 | H I |
| φ12B | 67 | 87 | 48 | 12 | 72 | H I |
| Model | φ8 | φ12 | φ12B | |
| Accuracy Class | 0.5 1 | 0.5 1 | 0.2 0.5 1 | |
|
Primary Current/Secondary Current(A) |
Rated Burden (VA) | |||
| 50 | 1 | 0.5 | 2.5 | |
| 60 | 1 | 2.5 | ||
| 75 | 2.5 | 2.5 | ||
| 100 | 0.5 | 2.5 | 2.5 5 | |
| 150 | 0.5 | 2.5 | 5 7.5 | |
| 200 | 1 | 5 | 10 | |
| 250 | 1 | 5 | 10 | |
| 300 | 5 10 | 5 10 | ||
| 400 | 5 10 | 5 10 | ||
