Features:
High Accuracy: Meets IEC 61869 standards, ensuring reliable performance for billing and monitoring purposes.
Compact Design: Space-saving construction for easy installation in tight spaces.
Wide Current Range: Primary current up to 30A, suitable for diverse industrial and commercial loads.
Durable Materials: Robust housing provides resistance to environmental factors and mechanical stress.

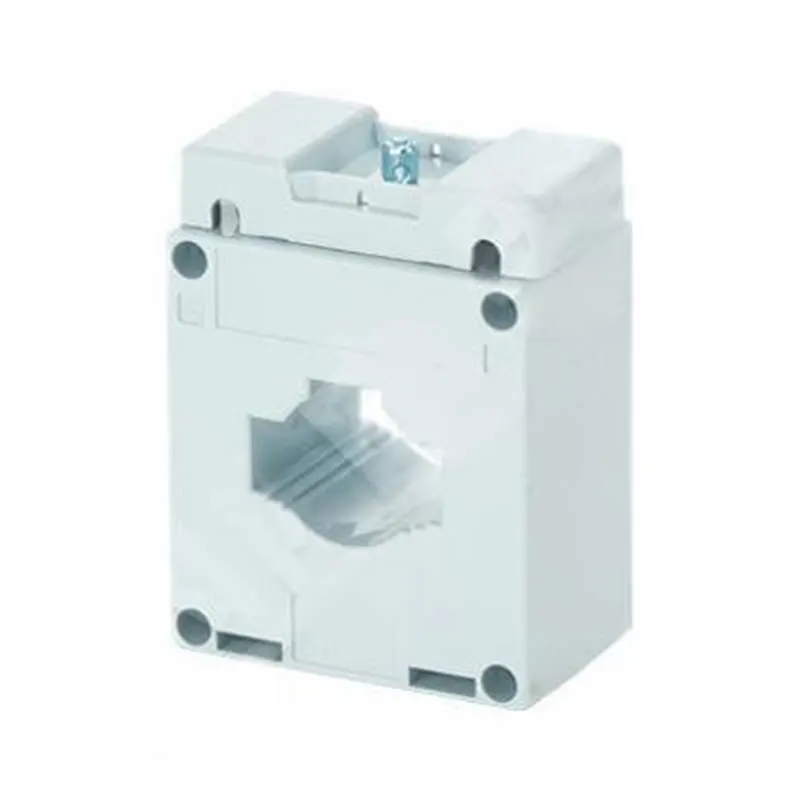

Safety Compliance: Bh-0.66-30 Current Transformers Compliant with international safety and performance certifications.
Energy metering in power distribution systems.
Overcurrent protection in circuit breakers and relays.
Integration with smart grids and IoT-based monitoring solutions.
Technical Specifications:
Rated Voltage: 0.66kV
Frequency: 50/60Hz
Accuracy Class: 0.5, 1.0 (customizable)
Burden: As per customer requirements
|
Rated primary current(A) |
Accuracy classes combination |
Rated secondary output(VA) | Is thermal current(kA) | Rated dynamic current(kA) | |||
| 0.2(S) | 0.2 | 0.5 | 10P10 | ||||
| 5-40 |
0.2/10P10 0.5/10P10 |
/ | 10 | 10 | 15 | 90lin | 220lin |
| 5-40 | 100lin | 250lin | |||||
| 5-40 | 20 | 50 | |||||
| 5-40 | |||||||
| 5-40 | 36 | 90 | |||||
| 10 | |||||||
| 5-40 | 45 | 100 | |||||
| 5-40 | 56 | 100 | |||||
| 5-40 | |||||||
| 5-40 | 80 | 110 | |||||
| 5-40 | 100 | 110 | |||||
