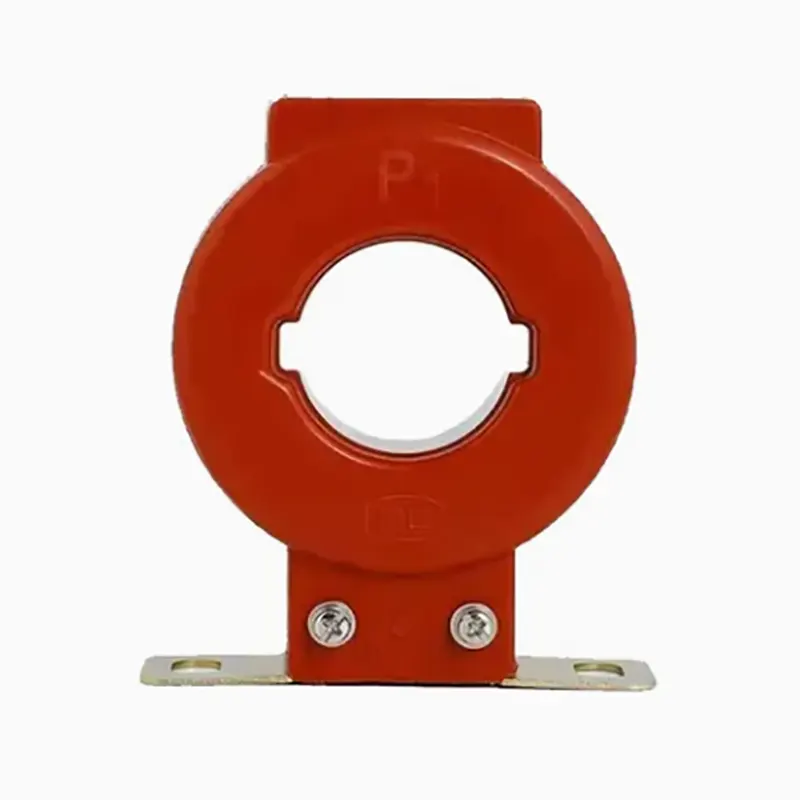

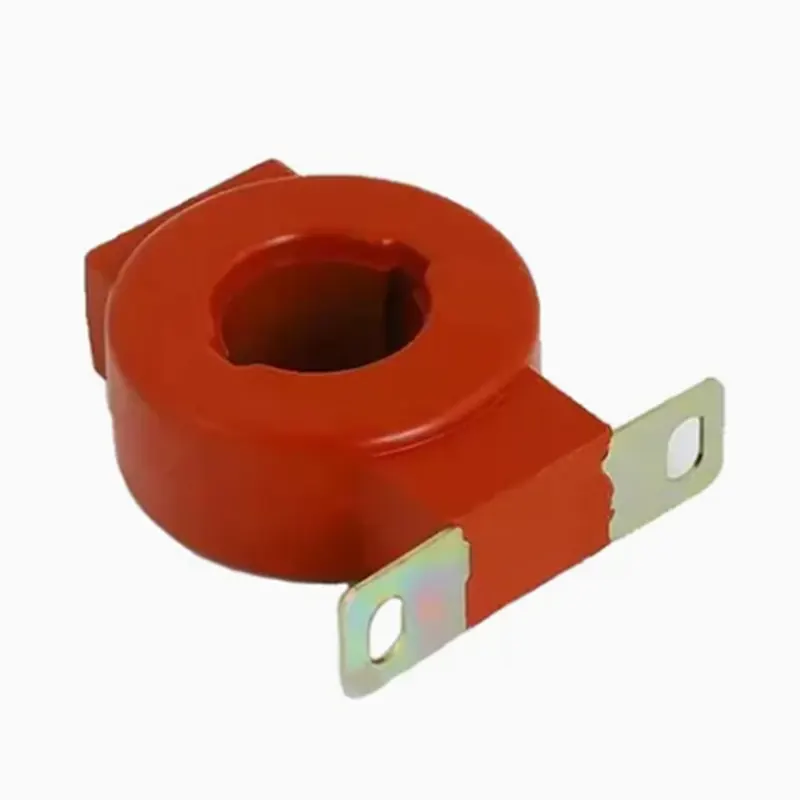

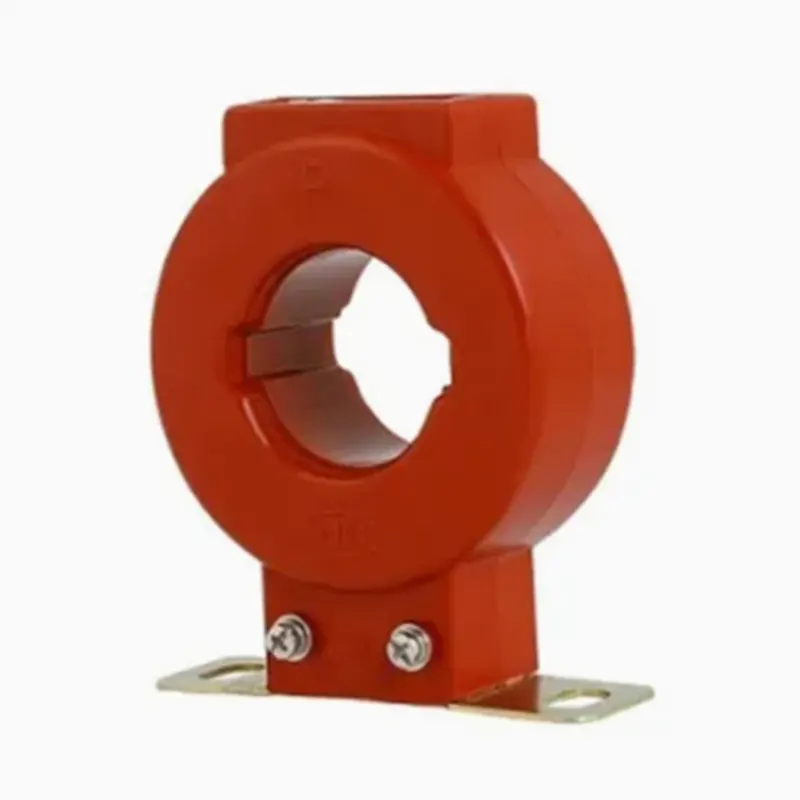

LMZJ1-0.5-40 CURRENT TRANSFORMERS is a high-performance current transformer widely used in power systems for measuring and monitoring electric currents. This product features precise current measurement capabilities, converting high currents into standard measurement signals for accurate current monitoring and control within the system.
Manufactured using advanced technology and materials, the LMZJ1-0.5-40 CURRENT TRANSFORMERS exhibit excellent stability and reliability, ensuring long-term stable operation even in harsh working environments. With a compact design and easy installation, this product is suitable for various power equipment and systems.
| Rated voltage | 500V |
| Rated frequency | 50Hz |
| Rated primary current | 10A, 12.5A, 15A, 20A,25A..,6000A |
| Rated secondary current | 5A;1A |
|
Secondary load power factor |
0.8(delay) |
| Rated output | 2.5VA, 5VA, 10VA, 20VA |
| Accuracy | 0.2;0.2S;0.5;0.5S |
| Isolation resistance |
isolation resistance of primary winding to secondary winding and to earth ≥20MΩ |
|
Power frequency withstand voltage |
Withstand valid value of primary winding to secondary winding and to earth ≥ 3kV |
