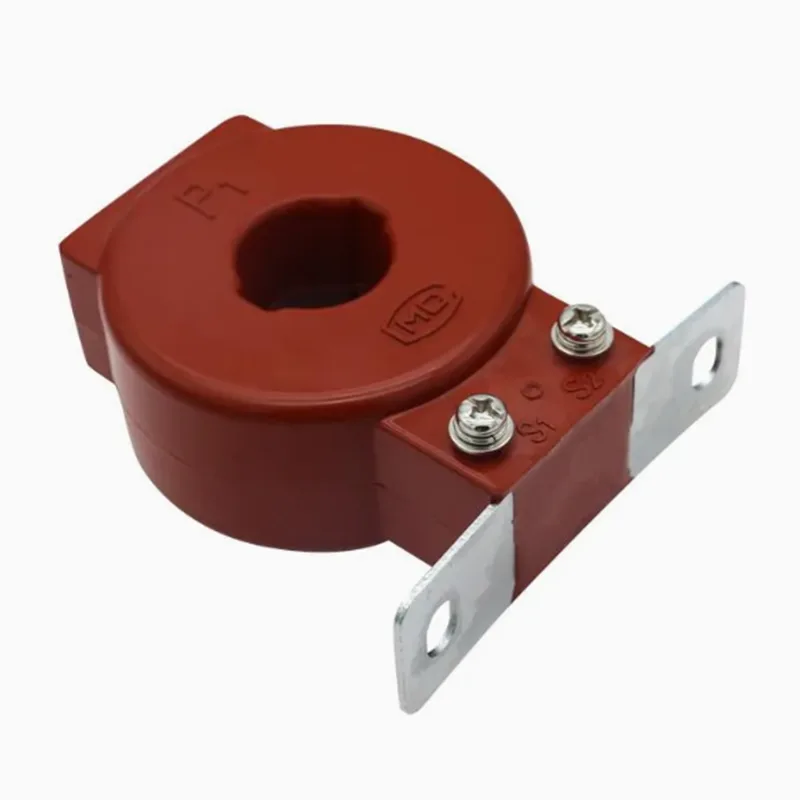

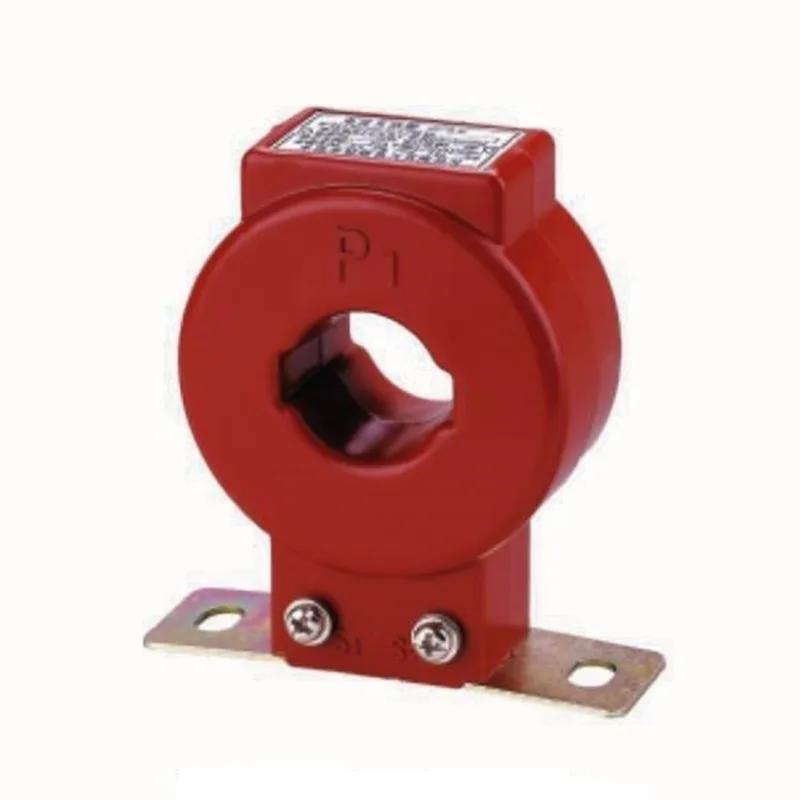

LMZJ1-0.5-30 Current Transformers

Features:

High Accuracy Class 0.5 – Provides precise current measurement for metering and monitoring applications.

Wide Measuring Range – Supports multiple current ratios to accommodate various load conditions.

Compact & Lightweight Design – Easy to install in tight spaces without compromising performance.

Excellent Thermal Stability – Ensures stable operation even under fluctuating temperatures.

Strong Insulation & Safety – Complies with industry safety standards, offering reliable protection against electrical faults.

Versatile Applications – Ideal for use in power distribution panels, industrial automation, and renewable energy systems.

Technical Specifications:

Rated Primary Current: Customizable (e.g., 5A~2000A)

Rated Secondary Current: 5A or 1A (standard)

Accuracy Class: 0.5

Frequency: 50Hz/60Hz

Insulation Level: Up to 3kV

Operating Temperature: -25°C to +70°C

Applications:

Power metering & energy monitoring

Protection relays & circuit breakers

Industrial & commercial electrical systems

Solar & wind power installations
