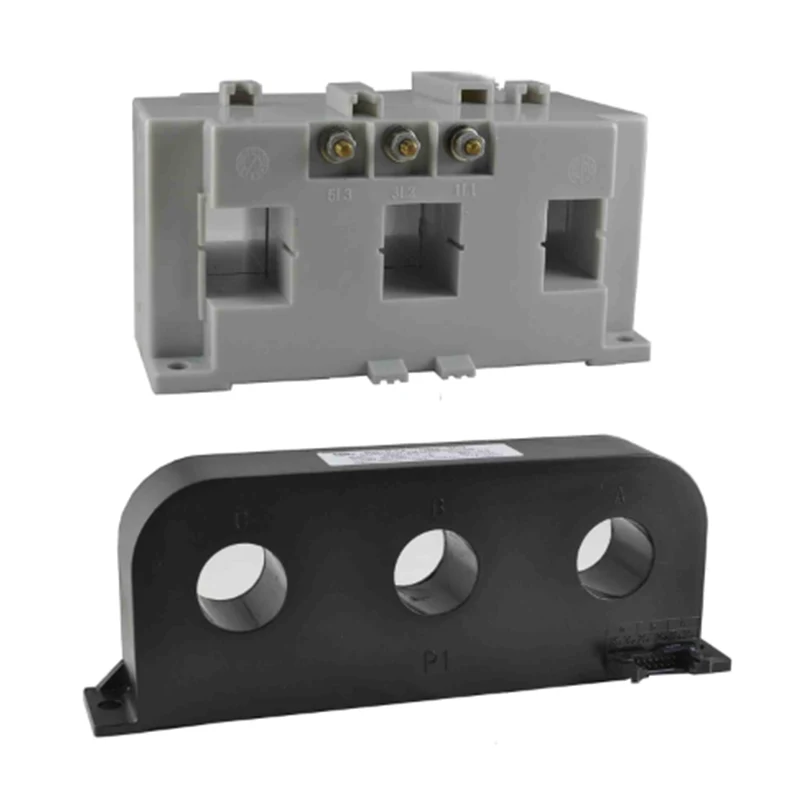

Z type current transformer is a three-phase combined type, compact structure, which is mainly applied to the fixed split distribution cabinet,which has the advantages of simple connection, current measurement,electric energy measurement and relay protection.
The product selection of flame retardant PC production, built-in transformer.
| Model | Rated Primary Current(A) | Rated Secondary Current(A) | Accuracy Class | Rated Burden(VA) | Insulation Level(kV/min) |

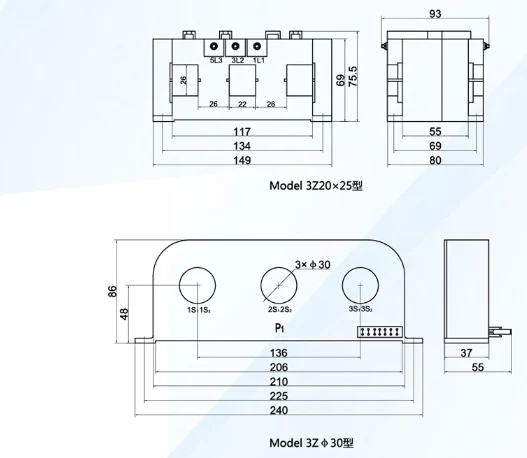

| 3Z20x25 | 100 |
5 or 1 5 or 1 |
1 | 2.5 | 3.0/2.0 |
| 150~400 | 0.5 | 5 | |||
| 3Zφ30 | 100~300 |
0.1 or 0.02 0.1 or 0.02 |
0.5 | 1 | |
| 400~600 | 1 |
