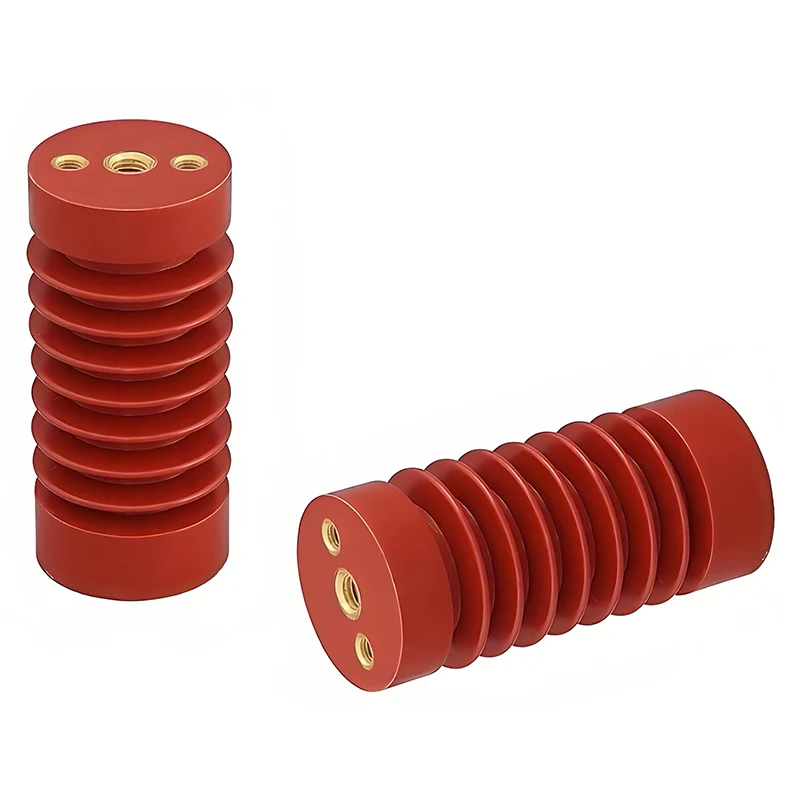

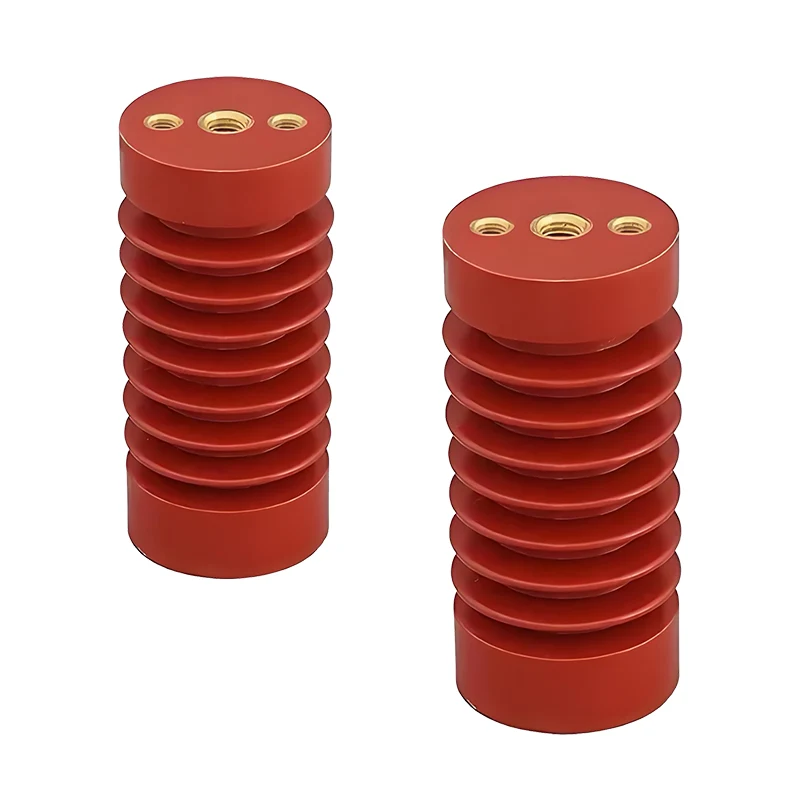

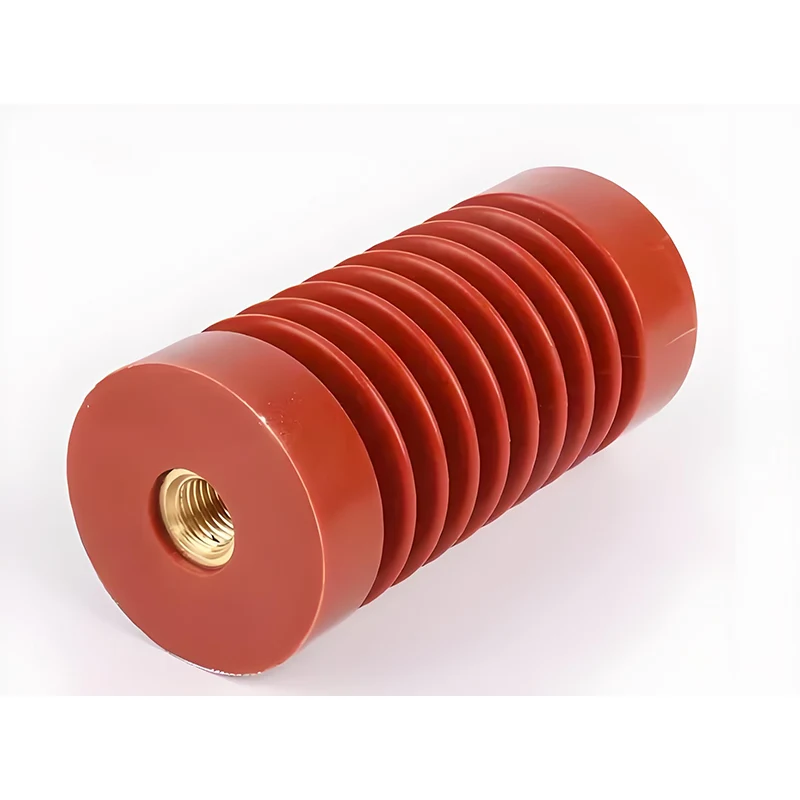

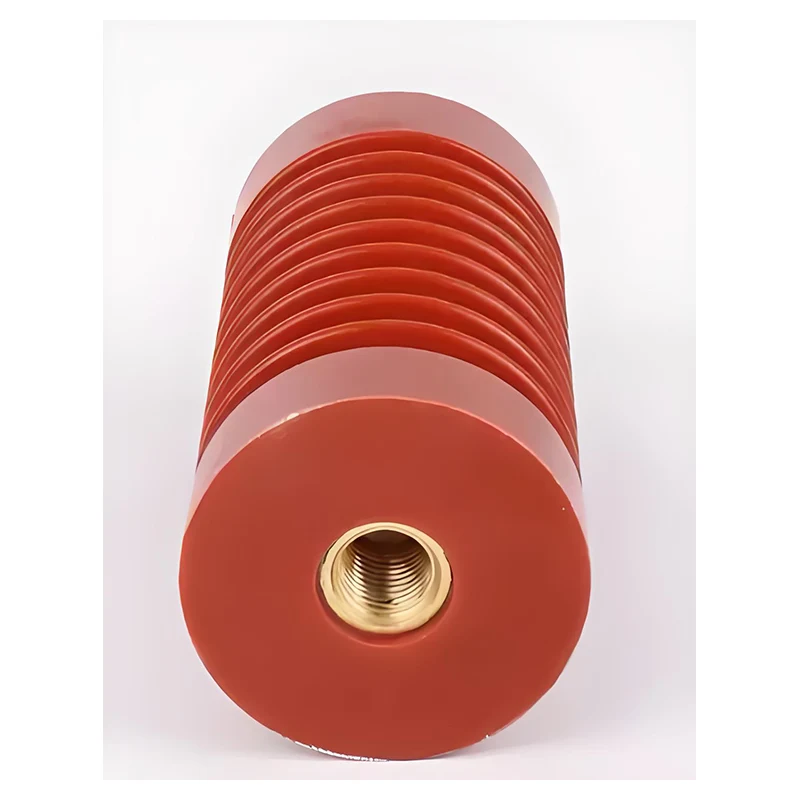

Support Insulator

Support insulator is an essential component in the power transmission and distributionsystem. It is designed to provide mechanical support and electrical insulation for the high voltage conductors. Our insulator support is made of high-quality materials and is designed to withstand harsh weather conditions and extreme temperatures.

Features:

1. Support insulator, sensor, connect with charged display device, used in switchgear application.

2. Made of epoxy resin, it is finished through complicated process.

3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supply the best quality products.

4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.

5 It provides different specifications based on the size of electric current for the user's choice, and sold well both at homeand abroad.

Epoxy resin support insulator are used in a variety of applications, including high voltage power transmission and distribution systems, as well as in electrical equipment such as transformers and switchgear. They are particularly well-suited for use in harsh environments, such as coastal areas or areas with high levels of pollution, due to their excellent resistance to weathering and chemical corrosion.

One of the key advantages of epoxy resin support insulator is their high mechanical strength. They are able to withstand high mechanical loads, such as those caused by wind or ice, without breaking or deforming. This makes them ideal for use in overhead power lines, where they are used to support the conductors and prevent electrical current from flowing through the supporting towers.

Epoxy resin support insulator also have excellent electrical insulation properties. They are able to withstand high voltages without breaking down, and are able to maintain their insulation properties even in harsh environments. This makes them ideal for use in electrical equipment such as transformers and switchgear, where they are used to isolate different parts of the electrical system and prevent electrical current from flowing where it is not intended.
