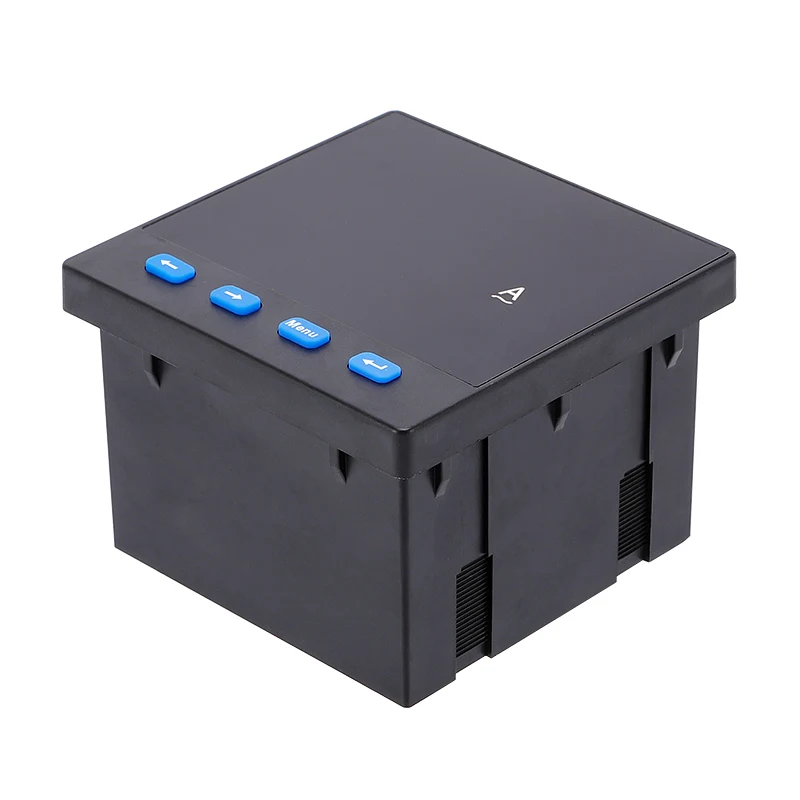

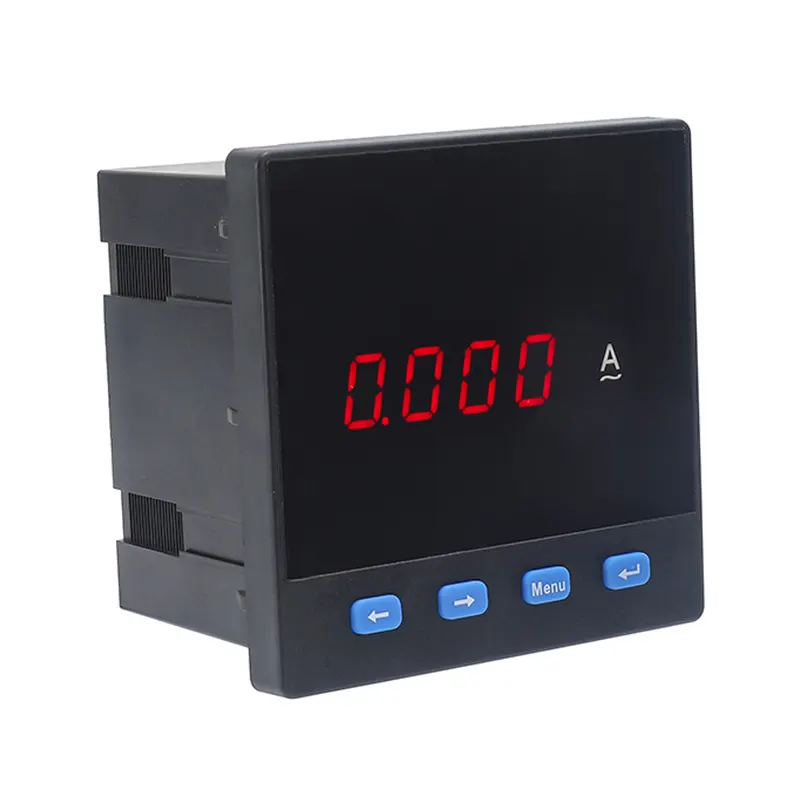

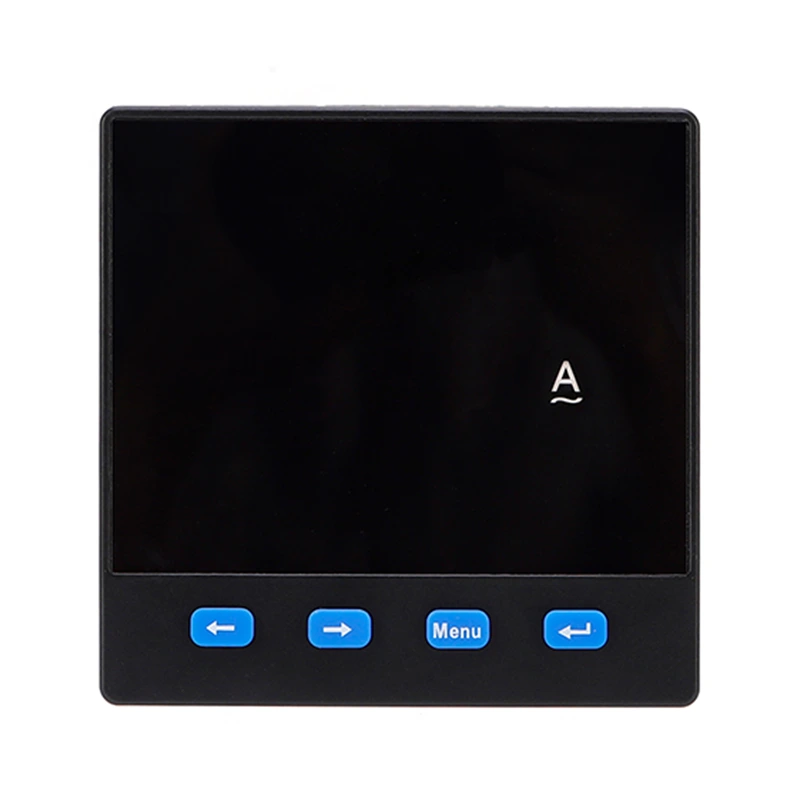

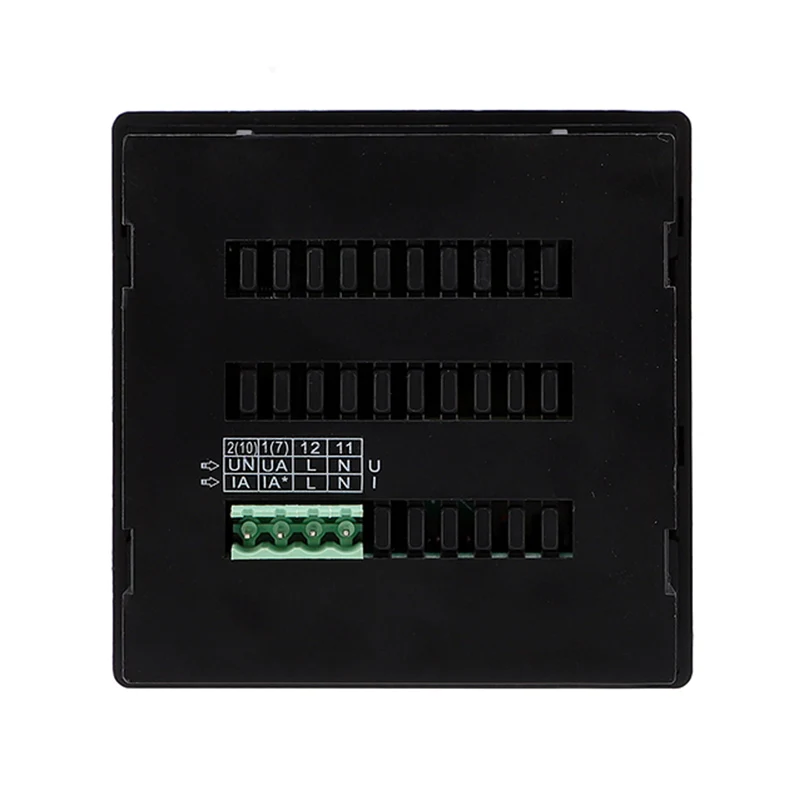

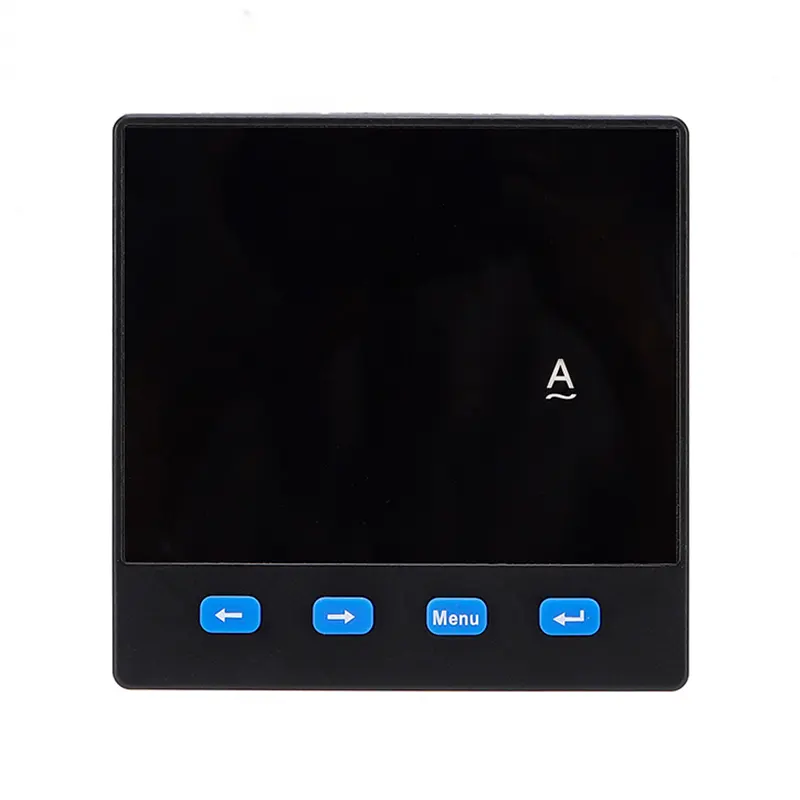

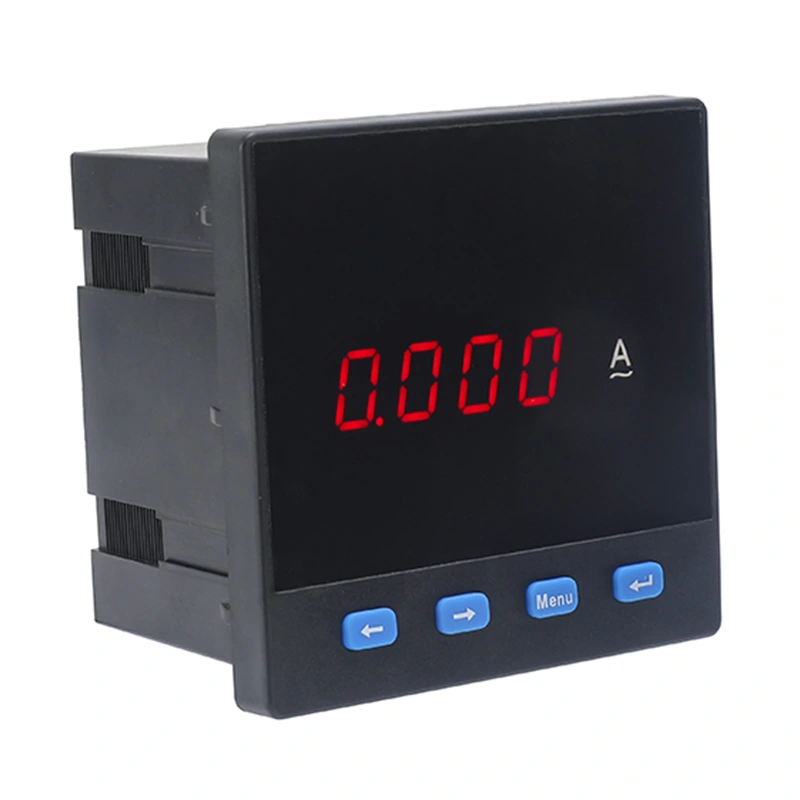

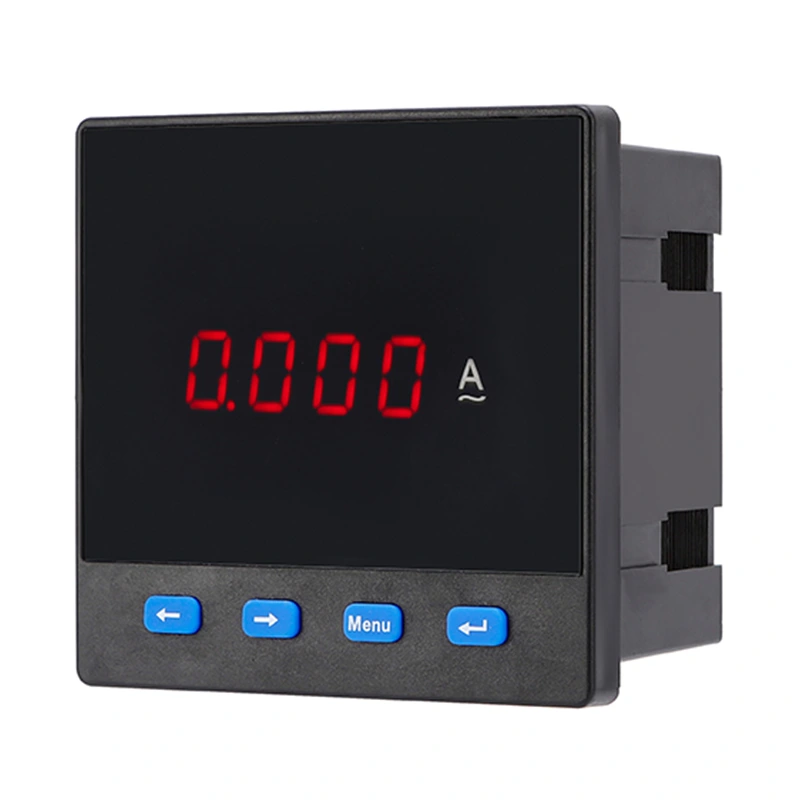

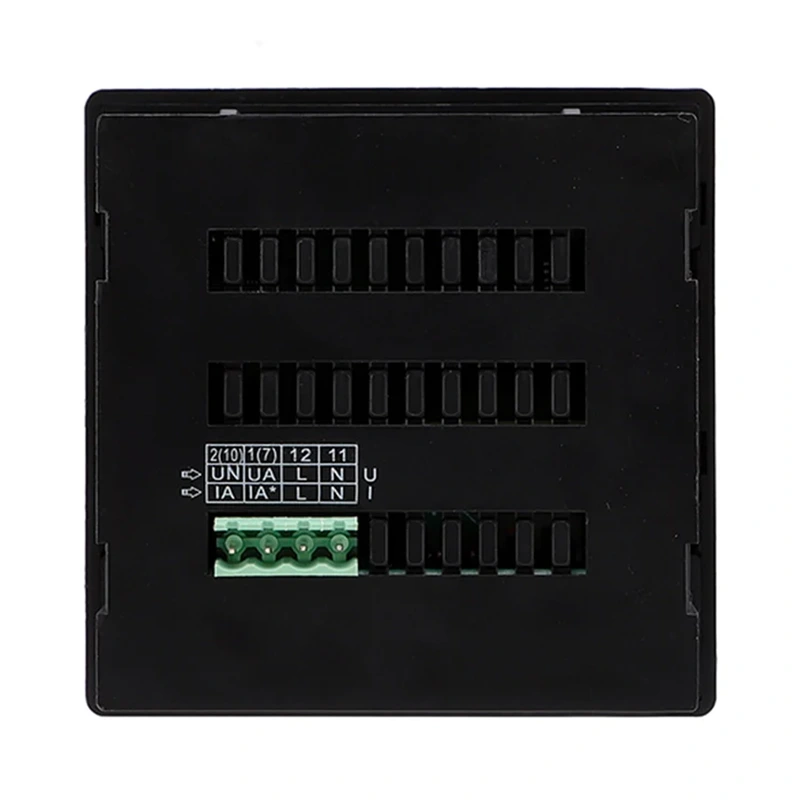

The single-phase ammeter is a precision instrument designed for measuring electrical current in a single-phase circuit. It is widely used in various industrial and commercial applications to monitor and control the flow of electricity. With its compact design and high accuracy, the single-phase ammeter provides reliable and real-time measurements for efficient power management.
Table Installation Sizes (mm)
| Size Code | Panel Size | Hole Size | Min.Mounting Distance | Total Installed Length | |
| L | W | ||||
| 2 | 120x120 | 111x111 | 120 | 120 | 80 |
| 3 | 80x80 | 76x76 | 80 | 80 | 75 |
| 9 | 96x96 | 91x91 | 96 | 96 | 80 |
| A | 72x72 | 67x67 | 72 | 72 | 75 |
| D | 48x48 | 45x45 | 48 | 48 | 85 |
1. Working power supply: AC220V±10% 50/60Hz
2. Power consumption: <1.5W
3. Accuracy: RMS measurement 0.5% grade
4. Working environment: -10°C ~ 50°C
5. Storage environment: -20°C~75°C
6. Insulation: >5MΩ
Description of the ammeter display mode
When the display value<10A, 3 decimals are displayed, i.e.: X.XXX A
When 10A≤display value<100A, 2 decimals are displayed, i.e.: XX.XX A
When 100A≤display value<1000A, 1 decimal is displayed, i.e.: XXX.X A
When 1000A≤displayed value<10000A, no decimal is displayed, i.e.: XXXX A
When displayed value≥10000A, the KA indicator lights up and the display reads: XX.XX KA
When the display value<1KV, 1 decimal is displayed, i.e.: XXX.X V
When 1KV≤display value<10KV, no decimal is displayed, i.e.: XXXX V
When 10KV≤display value<100KV, the KA indicator lights up and the display reads: XX.XX KV
When 100KV≤displayed value<1000KV, the KA indicator lights up and the display reads: XXX.X KV
When displayed value≥1000KV, the KA indicator lights up and the display reads: XXXX KV
