Support Sensor

Support Sensor is a cutting-edge product designed to revolutionize the way you monitor and manage your equipment. With its advanced technology and user-friendly interface, Support Sensor provides real-time data and insights to help you optimize performance, prevent downtime, and reduce maintenance costs.

Key Features:

.Real-time Monitoring: Support Sensor continuously monitors key parameters and alerts you to any deviations from normal operating conditions.

.Predictive Maintenance: By analyzing data trends, Support Sensor can predict potential issues before they occur, allowing you to take proactive measures to prevent downtime.

.Remote Access: Access your equipment data anytime, anywhere through the Support Sensor mobile app or web portal.

.Customizable Alerts: Set up custom alerts based on your specific requirements to ensure you never miss a critical event.

.Easy Installation: Support Sensor is easy to install and integrates seamlessly with your existing equipment.

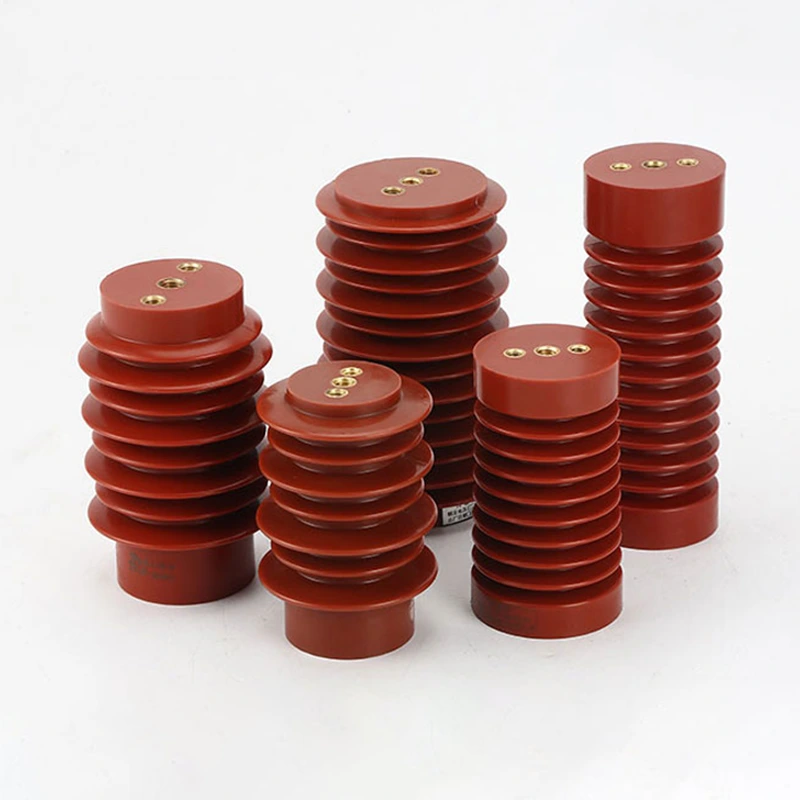

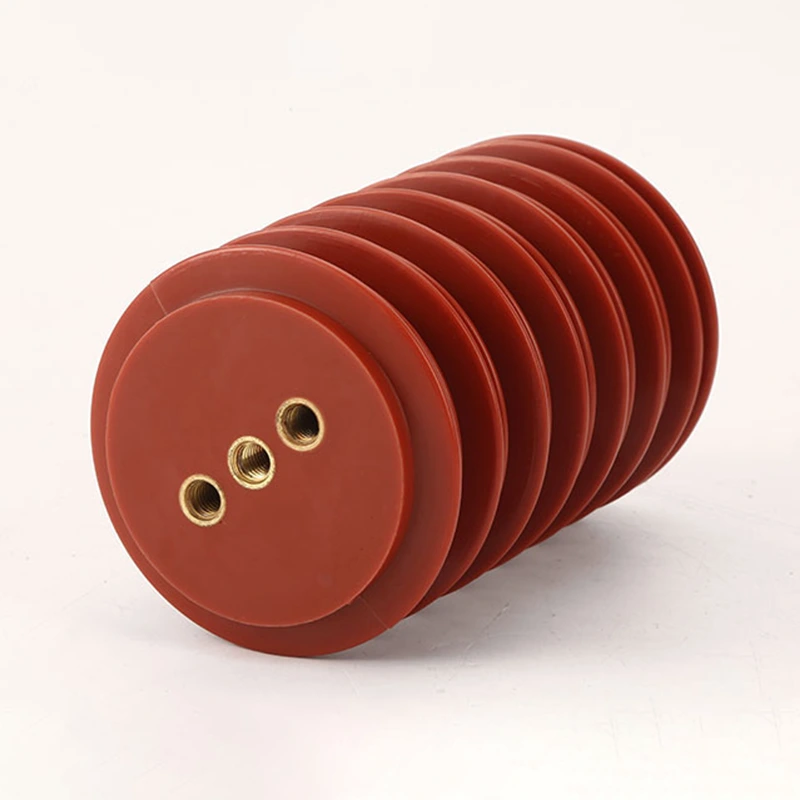

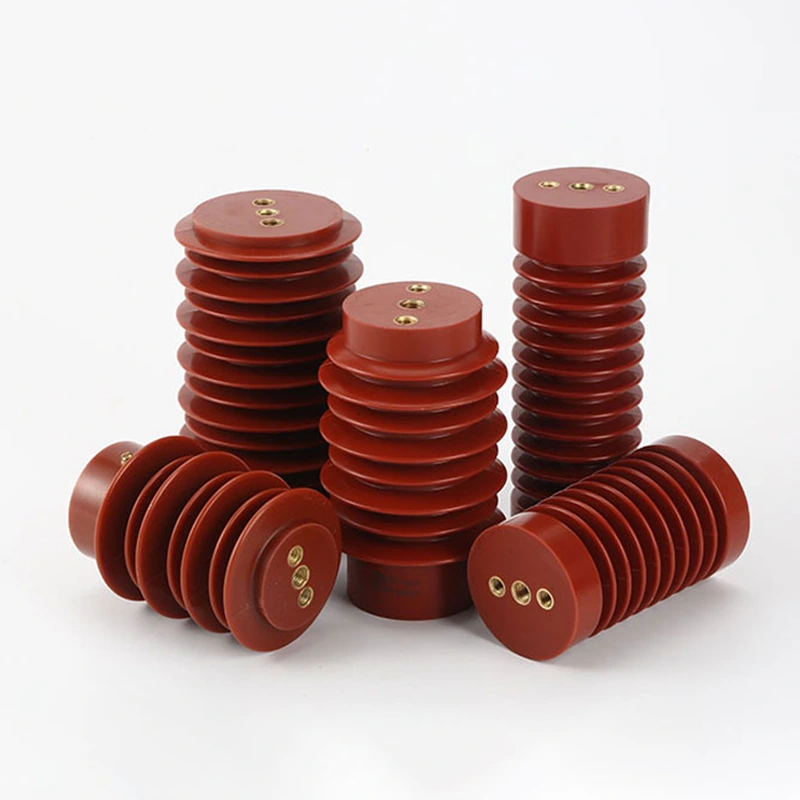

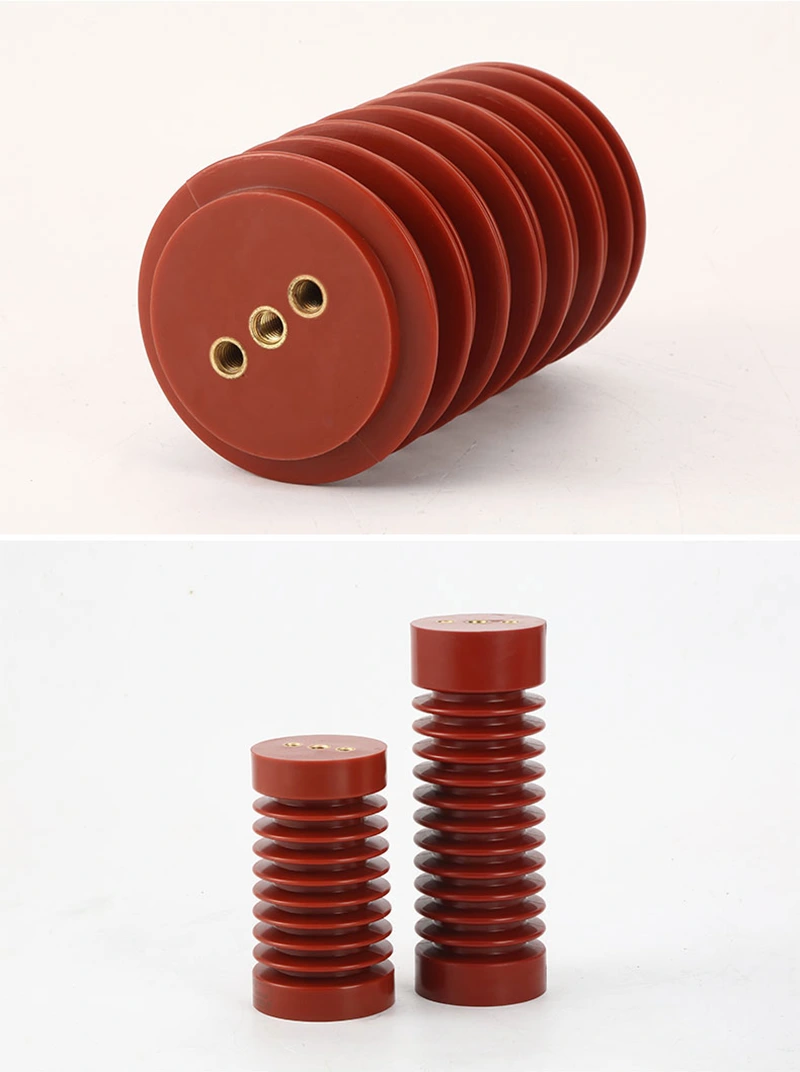

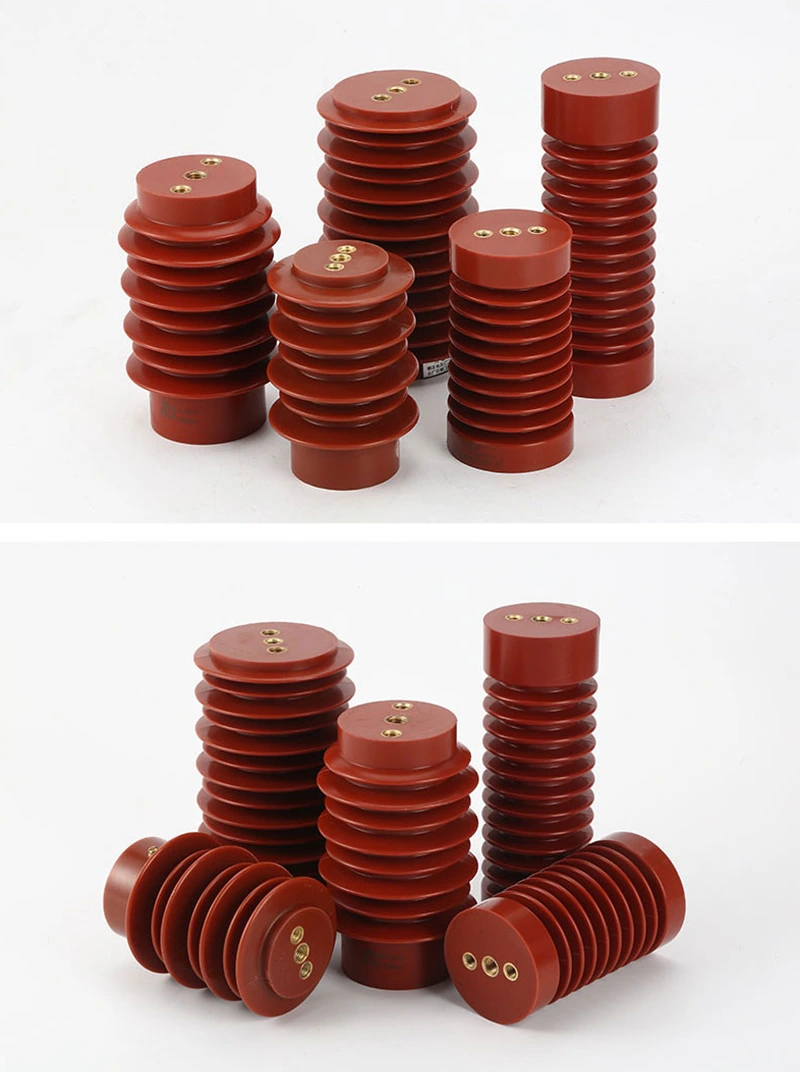

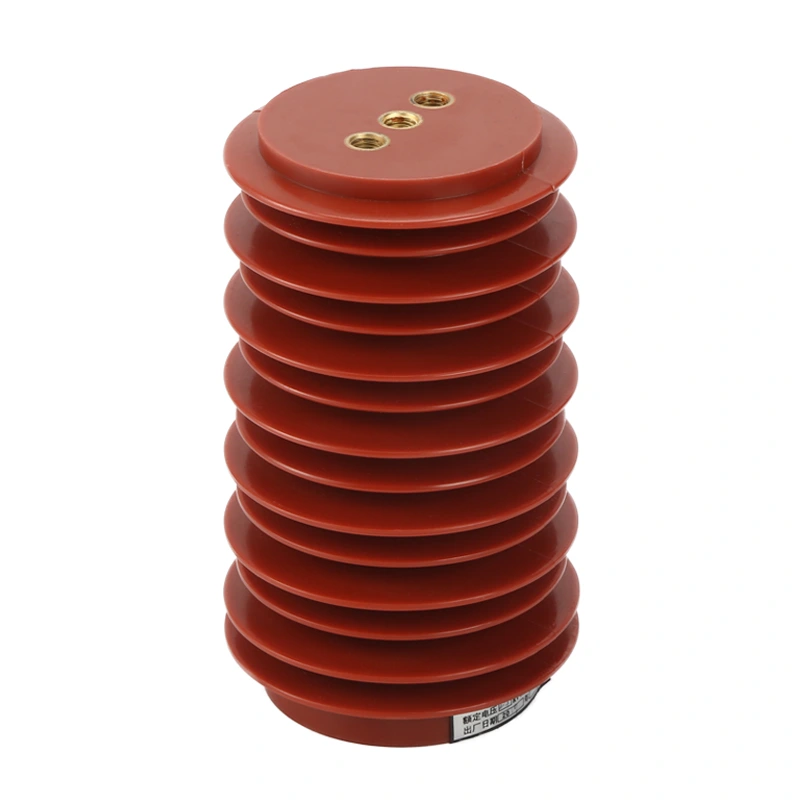

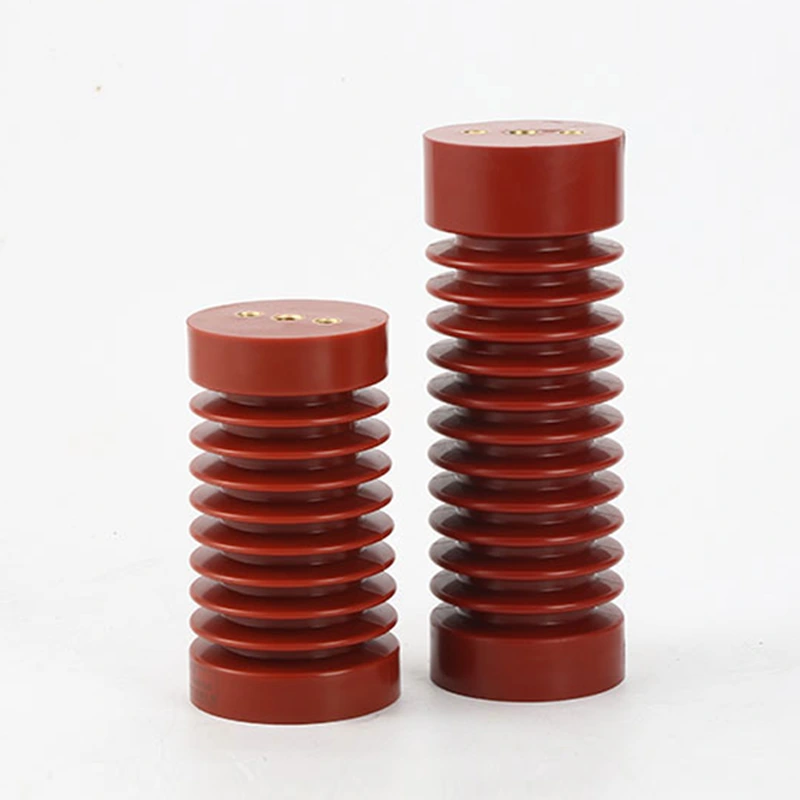

ZJ3-24/210  Supporting Sensor

General description

1.This insulator is formed by epoxy with APG technies,it is used for insulation isolation and connection transition of overhead transmission line.

2. Altitude:≤1000m

3. Ambient temperature:+40ºC~10ºC

4. The relative humidity shall not be more than 95% at+20ºC ambient temperature.

5. NO gas ,wapor or dust that may severely affect the insulation of contact box,no explosive or corrosive substance.

6. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV.

7. The temperature of lead-out terminal shall not bemore than 65ºC if the contact box is used for long time in rated current condition.

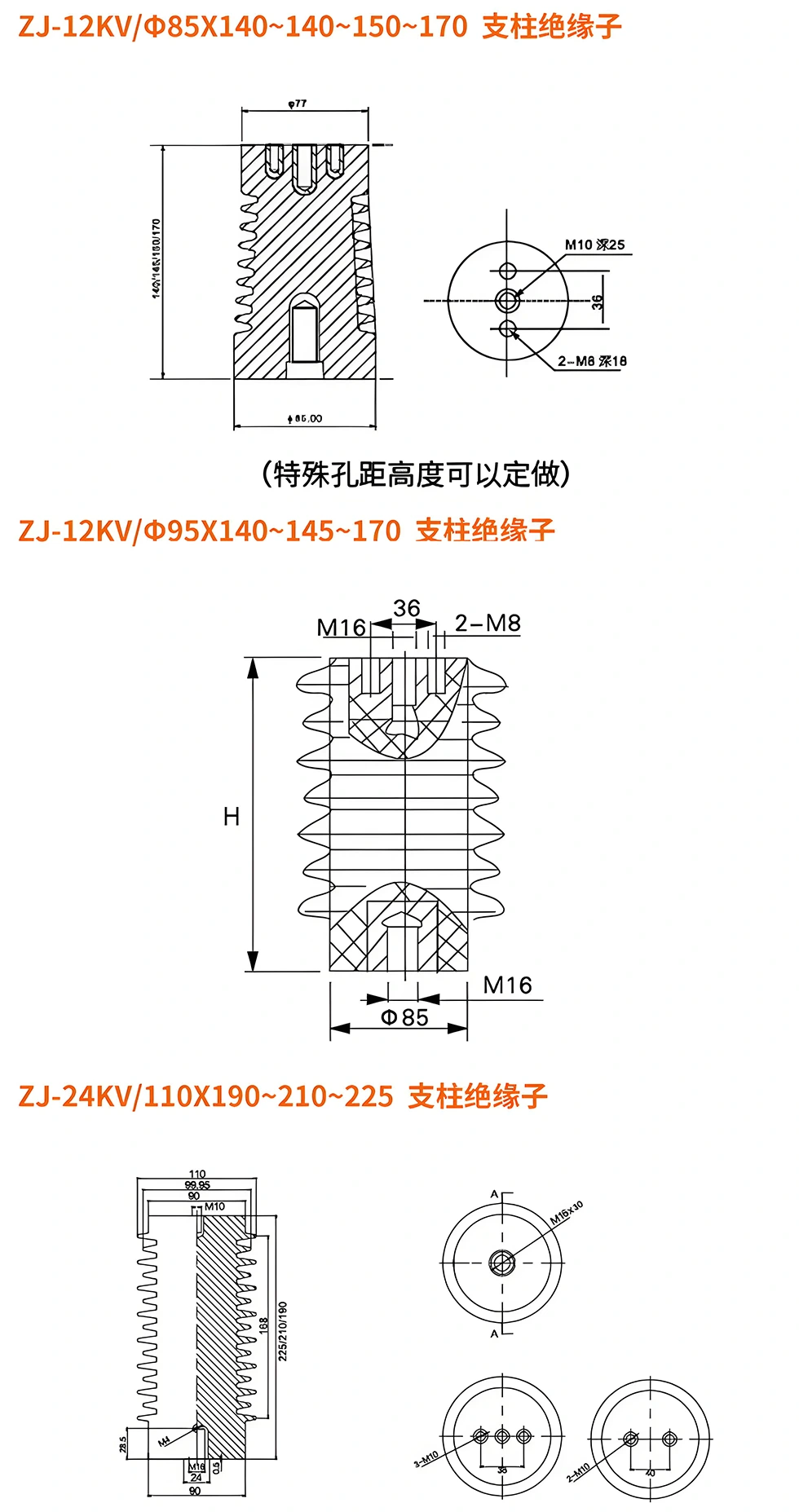

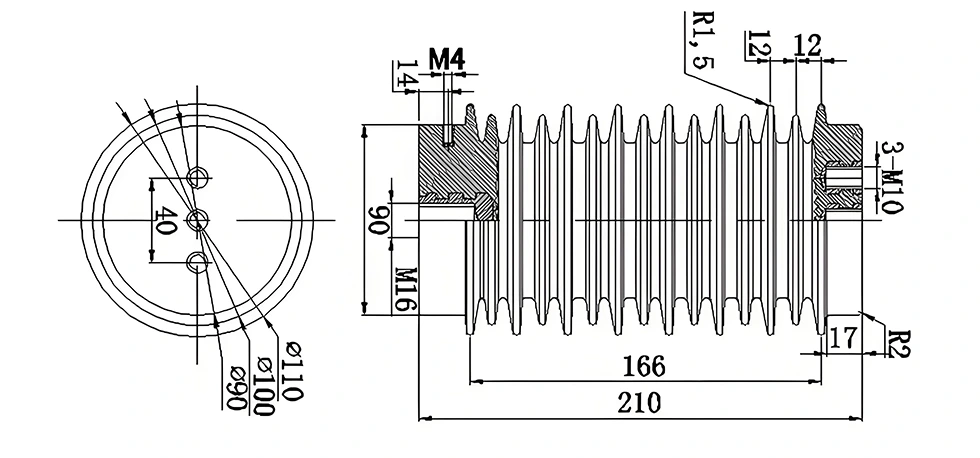

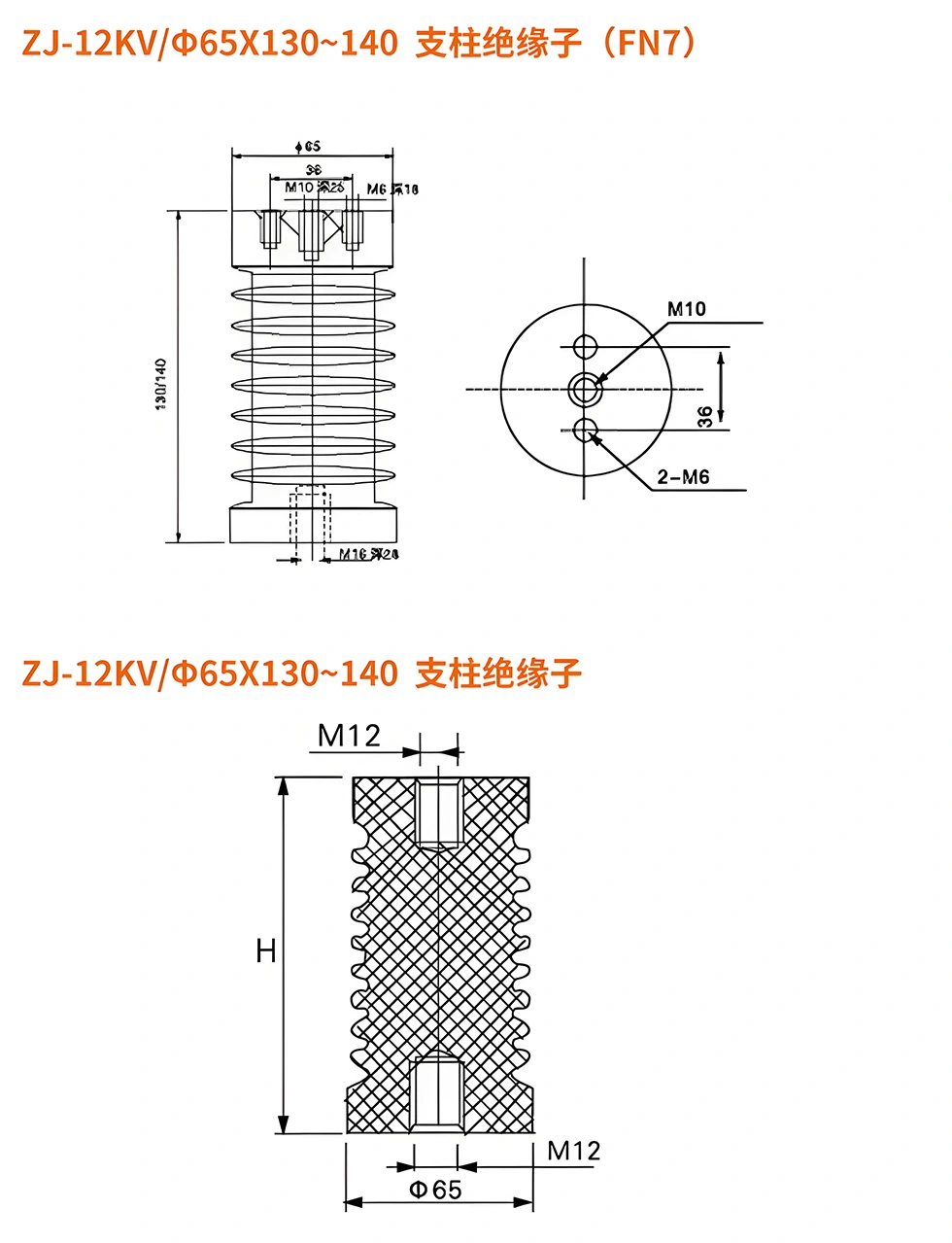

8. See the attached figure for the outline and installation dimension of insulator.
